DOOR SWITCH

Service repair no - 86.55.88

Remove

  1. Disconnect battery earth lead.

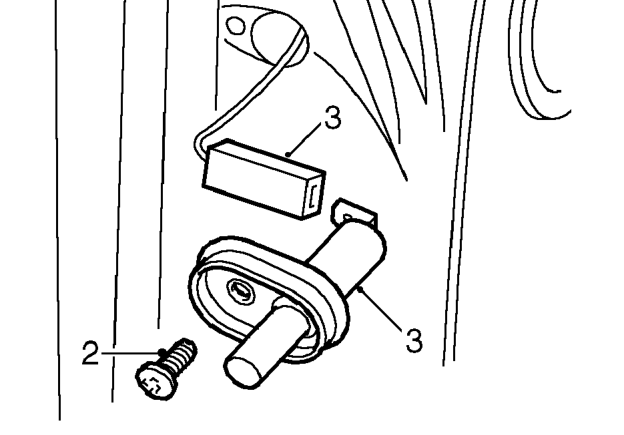

Door switch – Disconnect battery earth lead.
  1. Remove screw securing door switch to body.
  2. Release door switch and disconnect Lucar.

Refit

  1. Position switch to door and connect Lucar.
  2. Fit switch to door and secure with screw.
  3. Connect battery earth lead.

BONNET SWITCH

Service repair no - 86.55.89

Remove

  1. Disconnect battery earth lead.

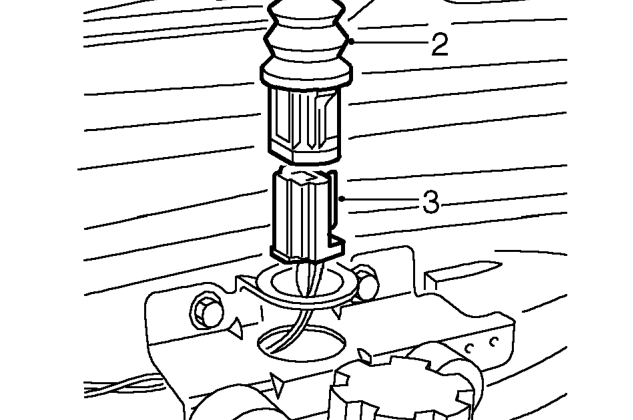

Bonnet switch – Disconnect battery earth lead.
  1. Release bonnet switch from mounting bracket.
  2. Disconnect multiplug from bonnet switch and remove switch.

Refit

  1. Connect multiplug to bonnet switch.
  2. Secure switch to mounting bracket.
  3. Connect battery earth lead.
