Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Hazard warning light switch

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Hazard warning light switch
ElectricalHazard warning light switch

HAZARD WARNING LIGHT SWITCH

Service repair no - 86.65.50

Remove

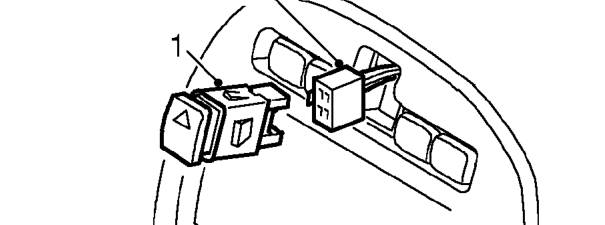

Hazard warning light switch – Service repair no - 86.65.50
  1. Release hazard warning light switch from centre console.
  2. Disconnect multiplug from rear of switch.
  3. Remove switch.

Refit

  1. Position switch to centre console and connect multiplug.
  2. Fit switch to centre console.

INDICATOR/HEADLAMP SWITCH

Service repair no - 86.65.55

Remove

  1. Remove rotary coupler. See this section.

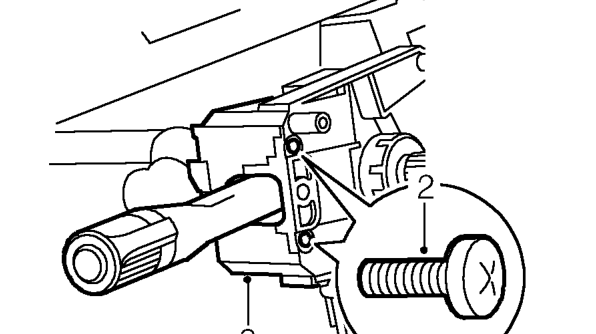

Indicator/headlamp switch – Remove rotary coupler. See this section.
  1. Remove 2 screws securing indicator/headlamp switch to switch pack.
  2. Depress retaining tag and remove switch assembly.

Refit

  1. Fit indicator/headlamp switch assembly and secure with screws.
  2. Fit rotary coupler. See this section.
