ElectricalStarter motor - ’l’ series

STARTER MOTOR - ’L’ SERIES

Service repair no - 86.60.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
Starter motor - ’l’ series – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.
  1. Disconnect Lucar from starter solenoid.
  2. Remove nut and disconnect battery lead from starter solenoid.
  3. Remove lower bolt securing starter motor to flywheel housing.
  4. Remove upper bolt securing starter motor to flywheel housing.
  5. Remove starter motor.

Refit

  1. Clean mating faces of starter motor and flywheel housing.
  2. Position starter motor to flywheel housing and fit upper bolt.
  3. Fit lower bolt securing starter motor to flywheel housing and tighten to 55 Nm.
  4. Tighten upper bolt, starter motor to flywheel housing, to 55 Nm.
  5. Connect battery cable to starter solenoid, fit nut and tighten to 4 Nm.
  6. Connect Lucar to starter solenoid.
  7. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - EDC, Repairs.

STARTER SOLENOID - ’K8’ AND ’K16’

Service repair no - 86.60.08

Remove

  1. Disconnect battery earth lead.
  2. Remove starter motor. See this section.

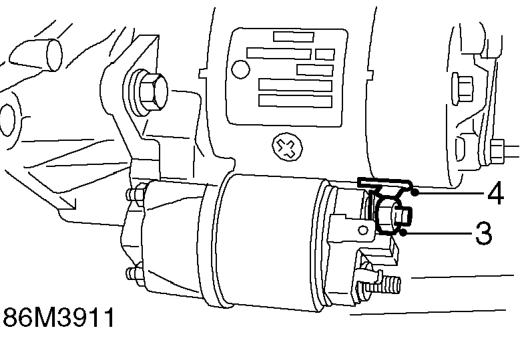

Starter solenoid - ’k8’ and ’k16’ – Remove starter motor. See this section.
  1. Remove nut securing starter motor cable to solenoid.
  2. Disconnect starter motor cable from starter solenoid.

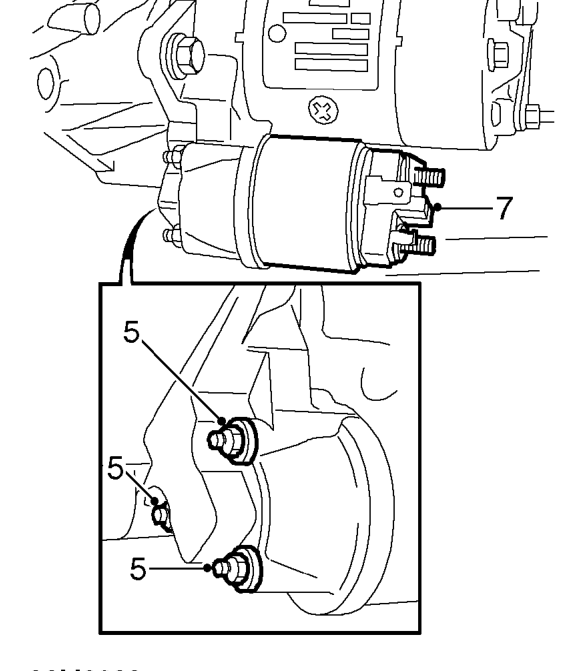

Starter solenoid - ’k8’ and ’k16’ – Disconnect starter motor cable from starter solenoid.
  1. Remove 3 nuts securing starter solenoid to starter motor.
  2. Release solenoid operating plunger from starter lever.
  3. Remove starter solenoid.
