Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Rear fog light switch

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Rear fog light switch
ElectricalRear fog light switch

REAR FOG LIGHT SWITCH

Service repair no - 86.65.65

Remove

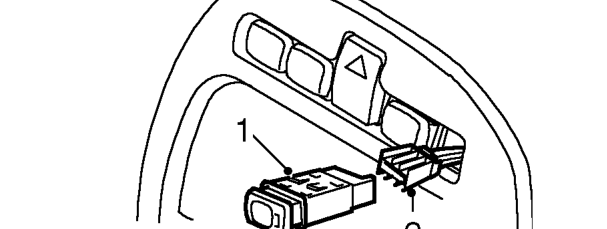

Rear fog light switch – Service repair no - 86.65.65
  1. Release rear fog light switch from centre console.
  2. Disconnect multiplug from rear of switch.
  3. Remove switch.

Refit

  1. Position switch to centre console and connect multiplug.
  2. Fit switch to centre console.

DOOR MIRROR SWITCH

Service repair no - 86.65.75

Remove

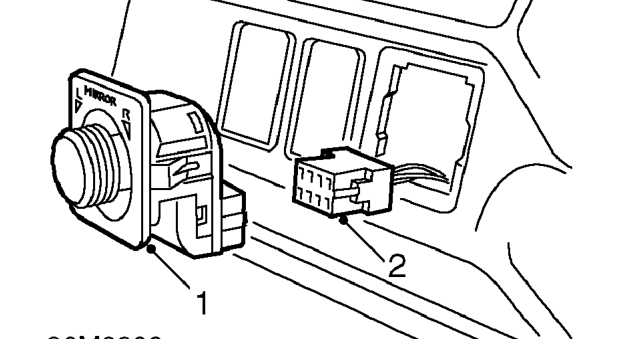

Door mirror switch – Service repair no - 86.65.75
  1. Release door mirror switch from fascia.
  2. Disconnect multiplug from rear of switch.
  3. Remove switch.

Refit

  1. Position switch to fascia and connect multiplug.
  2. Fit switch to fascia.
