AERIAL

Service repair no - 86.50.18

Remove

  1. Remove aerial from aerial base.
  2. Remove both ’A’ post upper trim casings. See BODY, Interior trim components.
Aerial – Remove both ’A’ post upper trim casings. See BODY, Interior trim components.

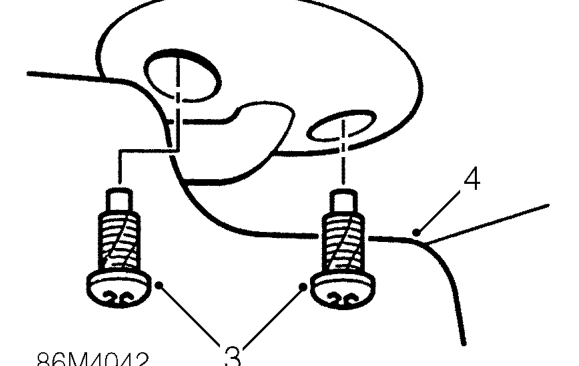

  1. Remove 2 screws securing each sun visor to roof.
  2. Remove both sun visors.
Aerial – Remove both sun visors.

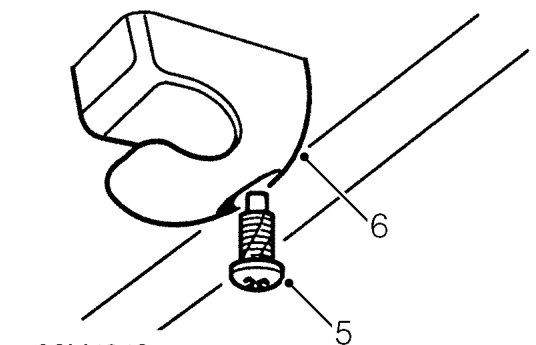

  1. Remove 2 screws securing both sun visor clips.
  2. Remove clips.
Aerial – Remove clips.

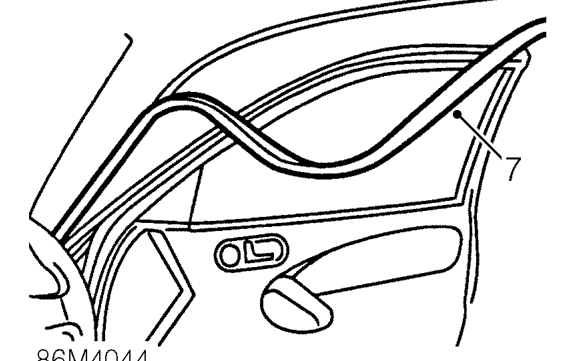

  1. Remove seals from top of both front door apertures.
Aerial – Remove seals from top of both front door apertures.

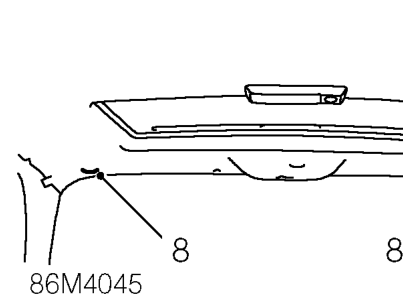

  1. Remove 2 trim studs securing headlining to roof.
Aerial – Remove 2 trim studs securing headlining to roof.

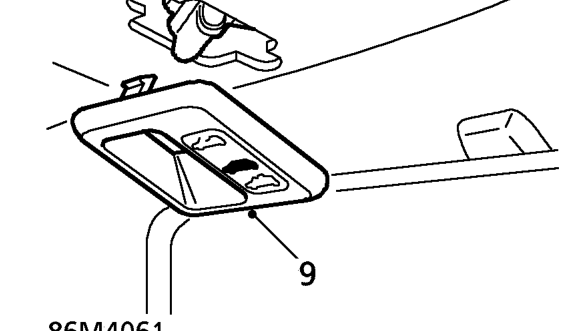

  1. Models with sun roof: release sun roof switch finisher from headlining and remove.
  2. Carefully lower front edge of headlining to gain access to aerial.
