STARTER MOTOR - ’K8 & K16’

Service repair no - 86.60.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

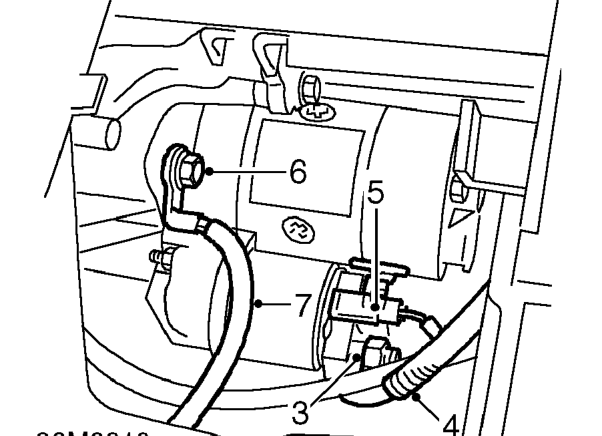

Starter motor - ’k8 & k16’ – Raise front of vehicle.
  1. Remove nut securing battery lead to starter solenoid.
  2. Disconnect battery lead from starter solenoid.
  3. Disconnect Lucar from starter solenoid.
  4. Remove upper bolt securing starter motor to engine.
  5. Disconnect battery earth lead from bolt.

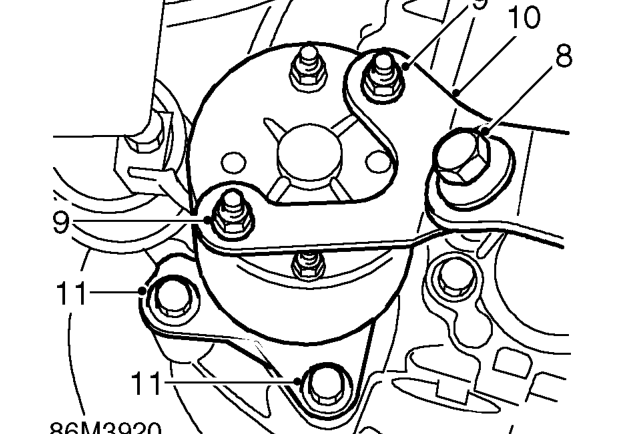

Starter motor - ’k8 & k16’ – Disconnect battery earth lead from bolt.
  1. Remove bolt securing starter motor to gearbox mounting bracket.
  2. Remove 2 nuts securing support bracket to starter motor.
  3. Remove support bracket from starter motor.
  4. Remove 2 lower bolts securing starter motor to engine.
  5. Remove starter motor.
