Engine management system - MEMSThrottle cable

THROTTLE CABLE

Service repair no - 19.20.06

Remove

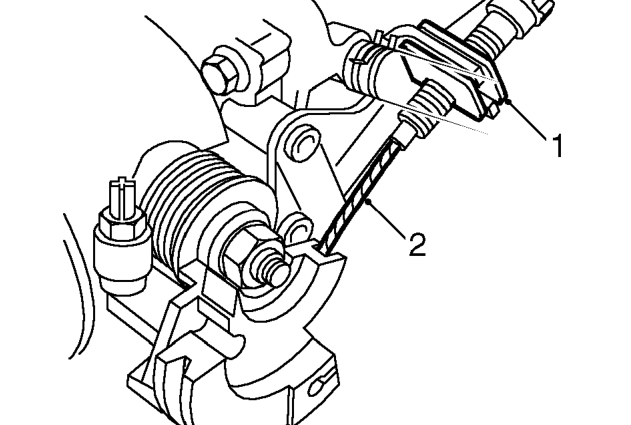

Throttle cable – Service repair no - 19.20.06
  1. Release cable adjusting nut from abutment bracket.

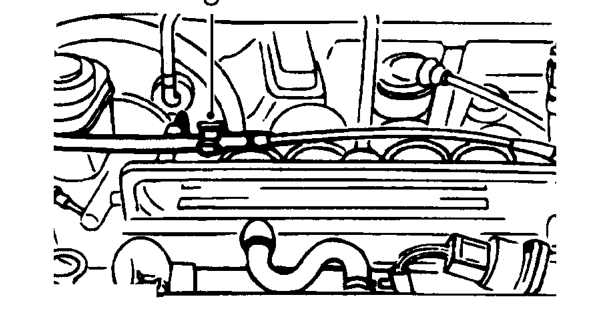

  2. Release inner cable from cam.
Throttle cable – Release inner cable from cam.

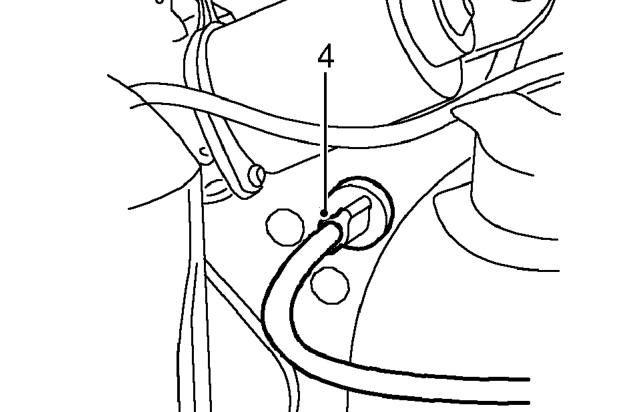

  1. Release cable from clip on inlet manifold.
Throttle cable – Release cable from clip on inlet manifold.
  1. Rotate collar through 90° and release cable from bulkhead.
Throttle cable – Rotate collar through 90° and release cable from bulkhead.

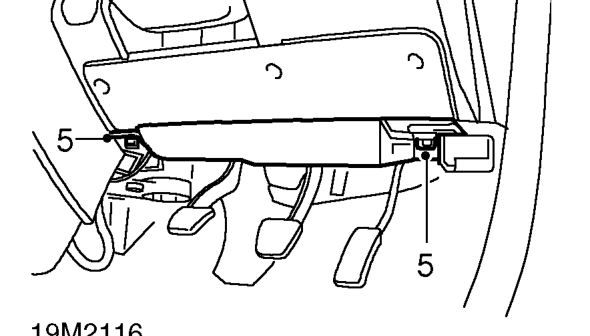

  1. Release 2 turnbuckles and remove closing panel.
