HEATED OXYGEN (HO2S) SENSOR - ’K16’

Service repair no - 19.22.16

Remove

  1. Remove exhaust manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

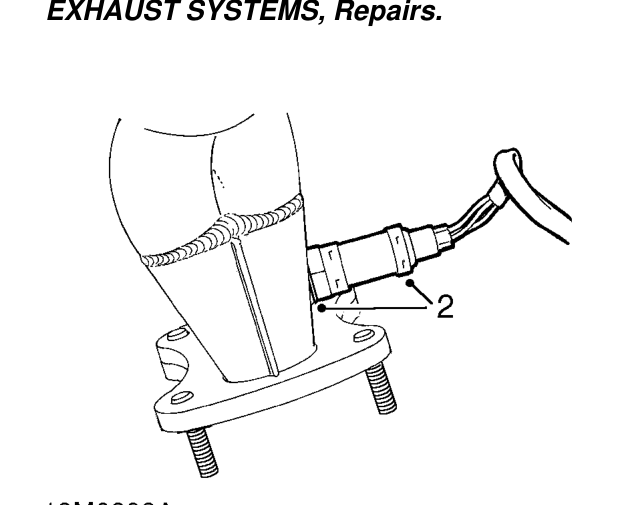

Heated oxygen (ho2s) sensor - ’k16’ – Remove exhaust manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  1. Using a 22 mm open ended spanner remove HO2S and collect sealing washer.

Refit

  1. Fit sealing washer to HO2S
  2. Fit HO2S and tighten to 55 Nm.
  3. Fit exhaust manifold See MANIFOLD & EXHAUST SYSTEMS, Repairs.

THROTTLE HOUSING

Service repair no - 19.22.45

Remove

  1. Disconnect battery earth lead.
Throttle housing – Disconnect battery earth lead.
  1. Release clip securing air intake hose to throttle housing.
  2. Disconnect air intake hose from throttle housing.
  3. Disconnect hose from IACV.
  4. Disconnect multiplug from TP sensor.
  5. Release clip and disconnect breather hose from throttle housing.
  6. Release throttle cable adjusting nut from abutment bracket.
  7. Disconnect throttle cable from throttle cam.
  8. Remove 4 bolts securing throttle housing to inlet manifold.
  9. Remove throttle housing.
  10. Remove and discard ’O’ ring from throttle housing.
