IGNITION COIL - ’K16 WITH VVC’

Service repair no - 18.20.43

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Disconnect battery earth lead.

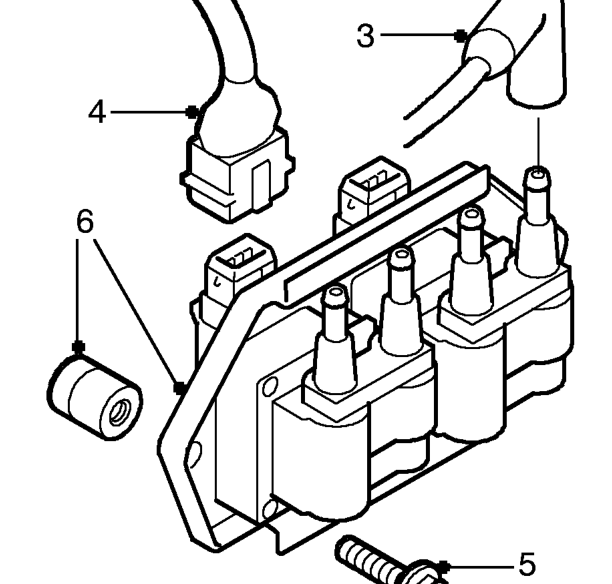

Ignition coil - ’k16 with vvc’ – Disconnect battery earth lead.
  1. Disconnect 4 h.t. leads from ignition coils.
  2. Disconnect 2 multiplugs from ignition coils.
  3. From beneath vehicle; remove 2 bolts securing ignition coil mounting bracket to cylinder block.
  4. Remove ignition coils and collect spacer.

Do not carry out further dismantling if component is removed for access only.

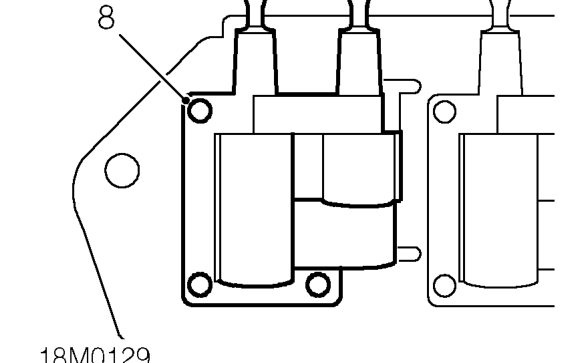

Ignition coil - ’k16 with vvc’ – Do not carry out further dismantling if component is removed for access only.
  1. Centre punch top of 3 rivets securing coil to mounting bracket.
  2. Drill out 3 rivets securing coil to mounting bracket.
  3. Remove ignition coil.
