FUEL RAIL - ’K8’

Service repair no - 19.60.04

Remove

  1. Disconnect battery earth lead.

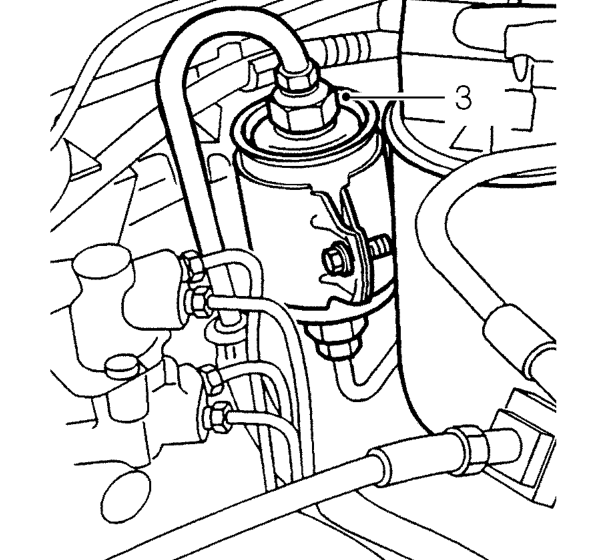

  2. Position absorbent cloth around fuel filter outlet union.
Fuel rail - ’k8’ – Position absorbent cloth around fuel filter outlet union.
  1. Loosen union to relieve fuel pressure, then re-tighten to 28 Nm.

CAUTION: To prevent damage to fuel system pipes or components, use two spanners when loosening or tightening unions.

  1. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Fuel rail - ’k8’ – Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

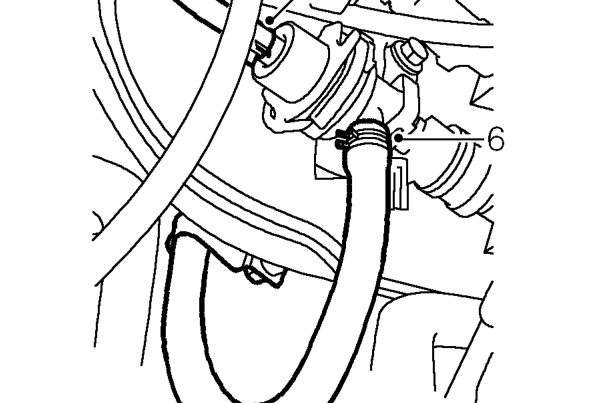

  1. Release clip and remove vacuum pipe from fuel pressure regulator.
  2. Release clip and disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

  1. Position an absorbent cloth around fuel feed connection.
Fuel rail - ’k8’ – Position an absorbent cloth around fuel feed connection.

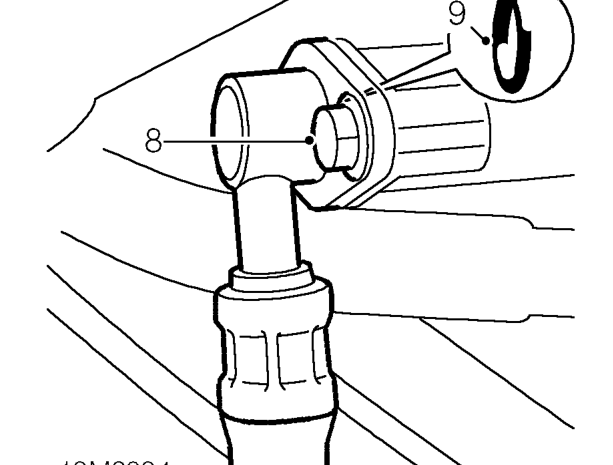

  1. Remove 2 bolts securing fuel feed pipe to fuel rail.
  2. Release fuel feed pipe from fuel rail and discard ’O’ ring.

CAUTION: Plug the connections.
