Rover 200 Workshop Manual (1995-1999)10 · Engine management system - MEMS
10 · Engine

Air cleaner

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Air cleaner
Engine management system - MEMSAir cleaner
Diagram
  1. Depress nylon clips and disconnect throttle cable from pedal.
  2. Remove throttle cable.

Refit

  1. Feed cable through bulkhead and connect inner cable to pedal.
  2. Fit closing panel and secure with turnbuckles.
  3. Smear rubber grease of both sides of the rubber seal and secure cable to bulkhead.
  4. Fit throttle cable to clip on inlet manifold.

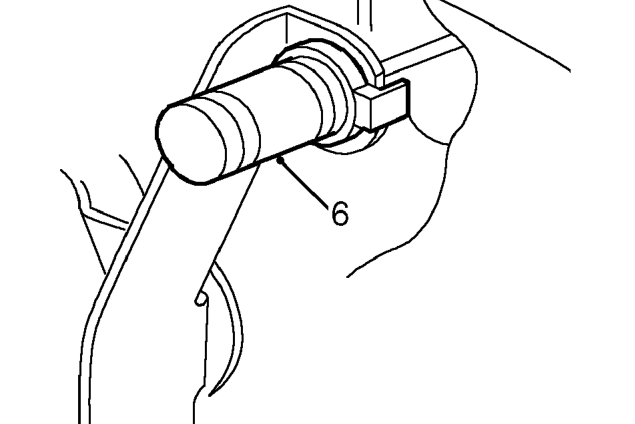

  5. Connect throttle cable to throttle cam.
  6. Connect cable adjusting nut to abutment bracket.
  7. Adjust throttle cable. See Adjustments.

AIR CLEANER

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.

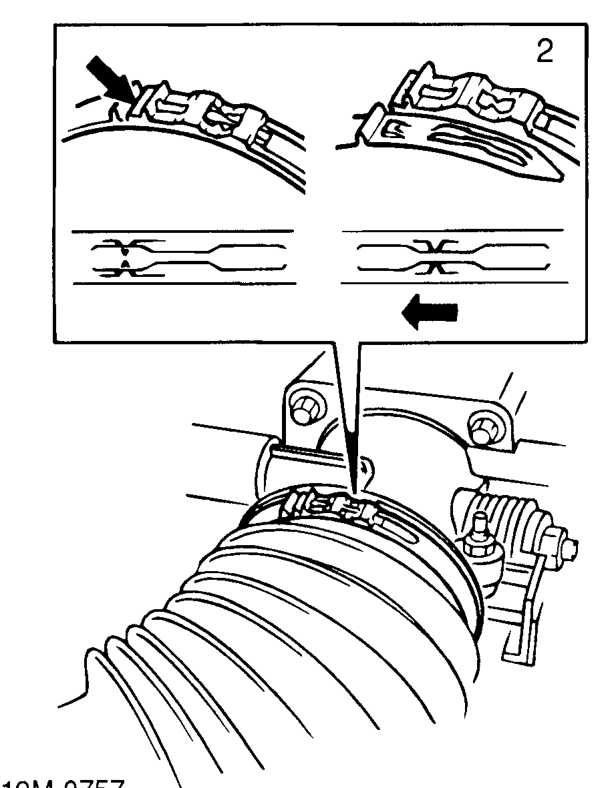

Air cleaner – Remove battery. See ELECTRICAL, Repairs.
  1. Release clip securing intake pipe to throttle housing.
