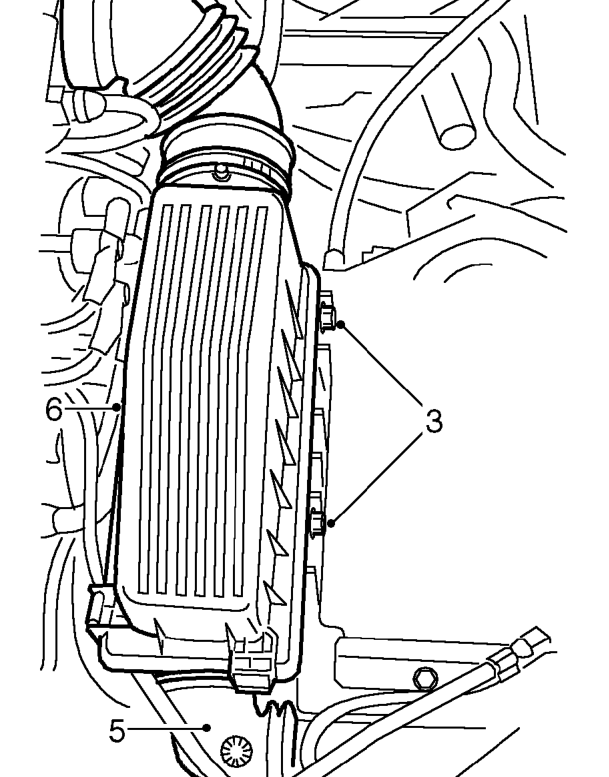

Air cleaner element

3. Remove 2 bolts securing air cleaner to battery tray.
4. Disconnect intake hose from throttle housing.
5. Release air cleaner from air intake hose
6. Remove air cleaner.

Refit

1. Position air cleaner in vehicle and connect to air intake hose.
2. Align air cleaner to battery tray.
3. Fit 2 bolts securing air cleaner to battery tray and tighten to 9 Nm.
4. Connect intake hose to throttle housing and secure with clip.
5. Fit battery. See ELECTRICAL, Repairs.

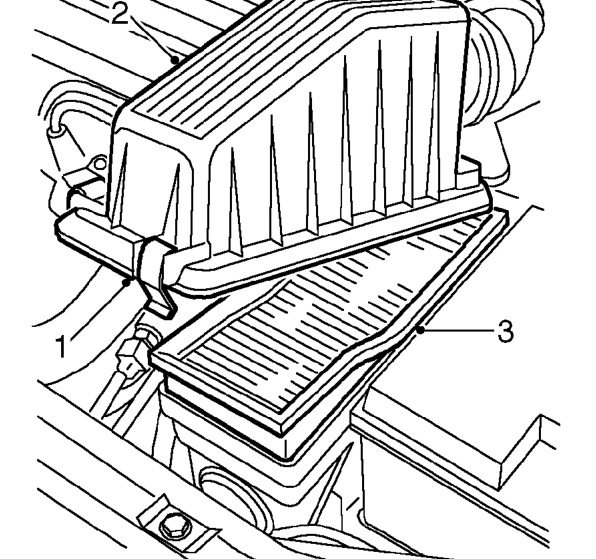

AIR CLEANER ELEMENT

Service repair no - 19.10.10

Remove

1. Release 4 clips securing 2 halves of air cleaner.
2. Release top half of air cleaner and position aside.
3. Remove and discard air cleaner element.

Refit

1. Clean inside of air cleaner casing.
2. Fit new air cleaner element in casing.
3. Position top half of air cleaner casing and secure with clips.
