CRANKSHAFT POSITION (CKP) SENSOR

Service repair no - 18.30.12

Remove

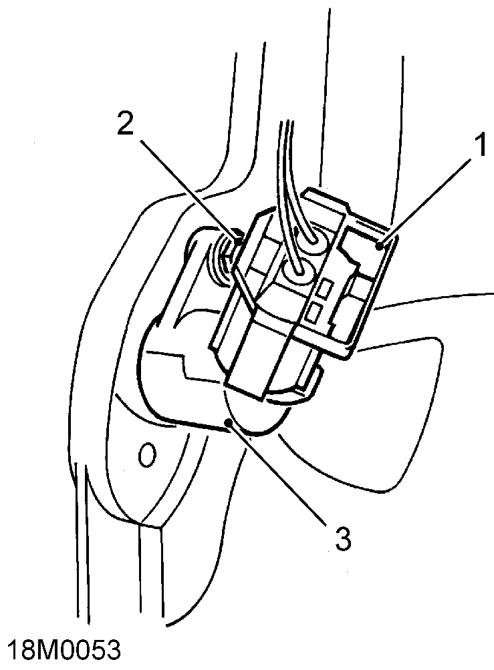

Crankshaft position (ckp) sensor – Service repair no - 18.30.12
  1. Disconnect multiplug from CKP sensor.
  2. Remove bolt securing CKP sensor to flywheel housing.
  3. Remove CKP sensor.

Refit

  1. Clean CKP sensor and mating face on flywheel housing.
  2. Position CKP sensor, fit bolt and tighten to 6 Nm.
  3. Connect multiplug to CKP sensor.

CRANKSHAFT POSITION (CKP) SENSOR - ’K16 1.8 & K16 WITH VVC’

Service repair no - 18.30.12

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

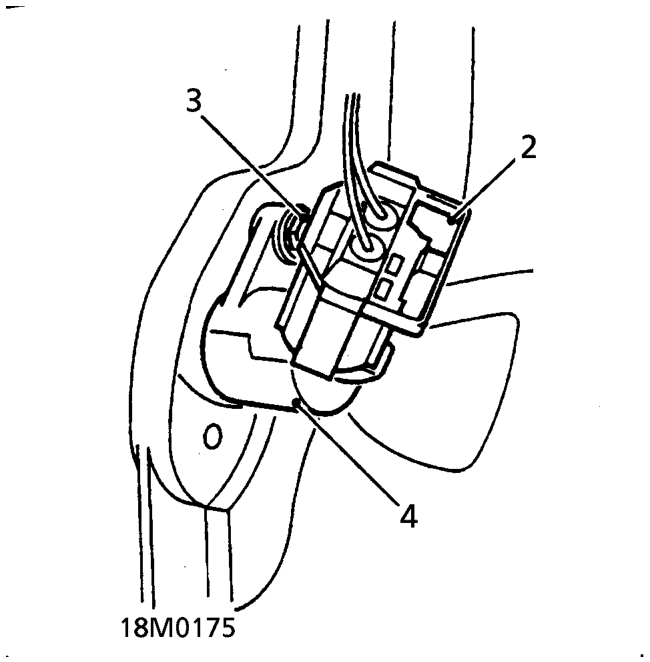

Crankshaft position (ckp) sensor - ’k16 1.8 & k16 with vvc’ – Raise front of vehicle.
  1. Disconnect multiplug from CKP sensor.
  2. Remove bolt securing CKP sensor to flywheel housing.
  3. Remove CKP sensor.

Refit

  1. Clean CKP sensor and mating face on flywheel housing.
  2. Position CKP sensor, fit bolt and tighten to 6 Nm.
  3. Connect multiplug to CKP sensor.
  4. Remove stand(s) and lower vehicle.
