AUXILIARY DRIVE BELT - ’K’ SERIES WITH POWER STEERING

Service repair no - 86.10.03.10

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove power steering pump drive belt. See STEERING, Repairs.

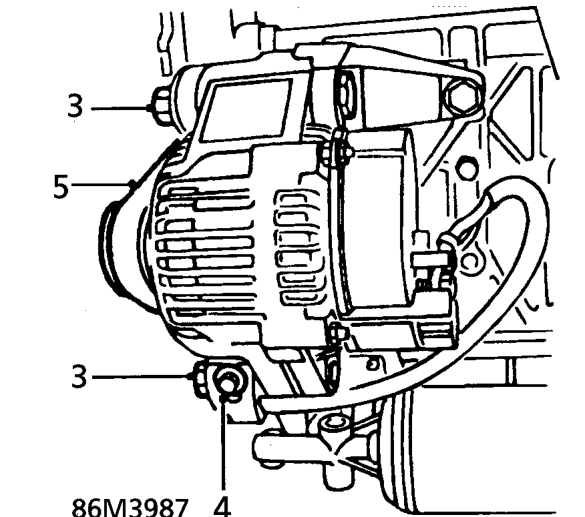

3. Loosen 2 alternator mounting bolts.

CAUTION: Ensure that bolts are loosened sufficiently for alternator to move freely.

4. Release drive belt tension by turning the tension adjusting bolt anti-clockwise.

CAUTION: Do not apply excessive torque to adjusting bolt or damage to bolt will result. If bolt appears to be seized or is difficult to turn, apply suitable anti-seize lubricant to bolt.

5. Release drive belt from alternator pulley.
6. Remove and discard drive belt.

Refit

1. Clean pulley ’V’s.
2. Fit new drive belt to crankshaft pulley and connect to alternator pulley. Ensure grooves on pulleys and drive belt are correctly located.
3. Adjust drive belt tension. See Adjustments.
4. Fit and adjust power steering pump drive belt. See STEERING, Adjustments.
5. Remove stand(s) and lower vehicle.
