ElectricalTail lamp

TAIL LAMP

Service repair no - 86.40.70

Remove

  1. Release trim stud by rotating through 90° and move luggage compartment carpet aside.

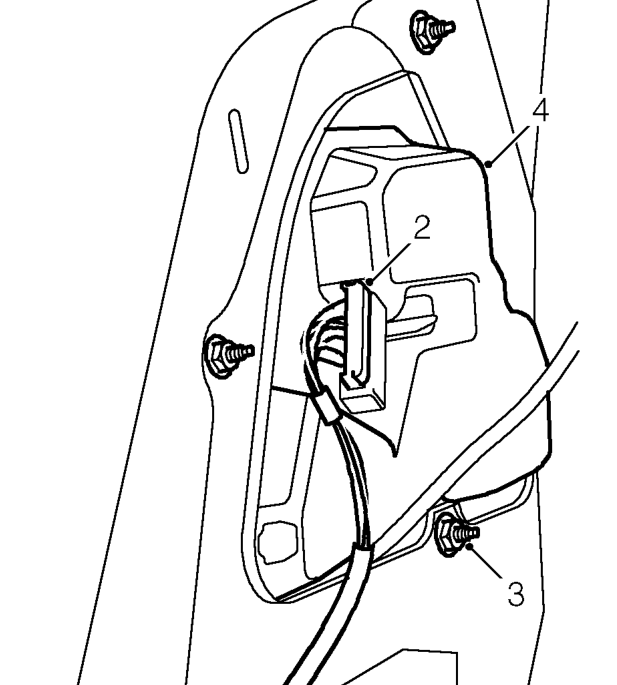

Tail lamp – Release trim stud by rotating through 90° and move luggage compartment carpet aside.
  1. Disconnect multiplug from tail lamp.
  2. Remove 3 screws securing tail lamp to body.
  3. Remove tail lamp.

Refit

  1. Fit tail lamp to body.
  2. Fit screws securing tail lamp to body and tighten evenly.
  3. Connect multiplug to tail lamp.
  4. Reposition luggage compartment carpet and secure with trim stud.

NUMBER PLATE LAMP

Service repair no - 86.40.86

Remove

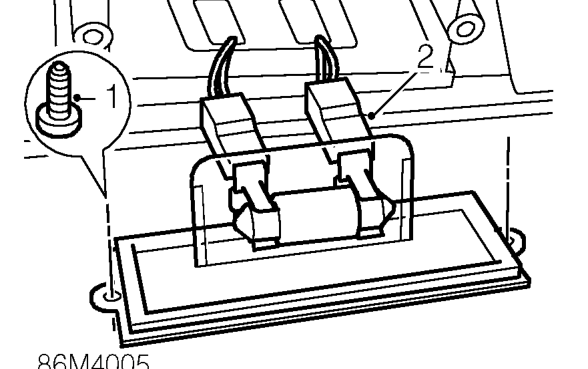

Number plate lamp – Service repair no - 86.40.86
  1. Remove 2 screws securing lamp to applique.
  2. Withdraw lamp from applique and disconnect 2 Lucar connectors.

Refit

  1. Position lamp to applique and connect lucars.
  2. Fit and tighten screws securing lamp to applique.
