Rover 200 Workshop Manual (1995-1999)31 · Electrical
31 · Electrical

Electric window switch

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Electric window switch
ElectricalElectric window switch

ELECTRIC WINDOW SWITCH

Service repair no - 86.25.07

Remove

  1. Remove finisher from centre console.

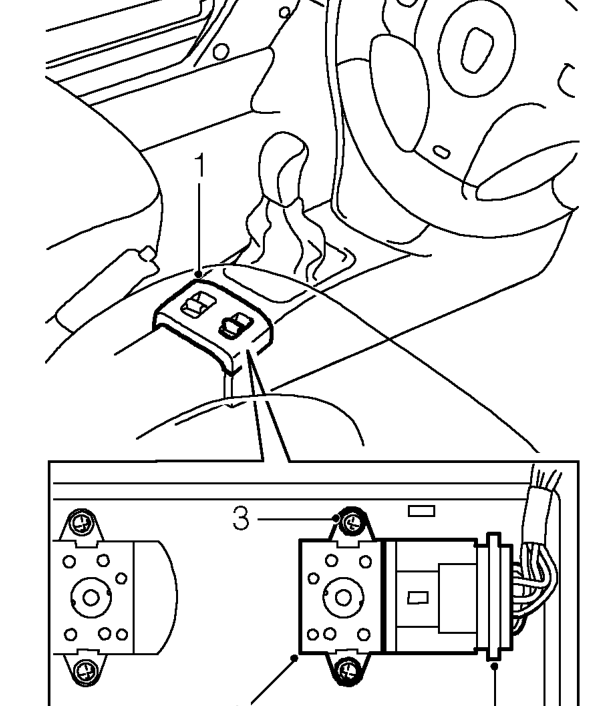

Electric window switch – Remove finisher from centre console.
  1. Disconnect multiplug from switch.
  2. Remove 2 screws securing switch to finisher.
  3. Remove switch from finisher.

Refit

  1. Fit switch to finisher and secure with screws.
  2. Connect multiplug to switch.
  3. Fit finisher to centre console.

WINDOW LIFT ECU

Service repair no - 86.25.39

Remove

  1. Remove drivers door trim casing. See BODY, Interior trim components.

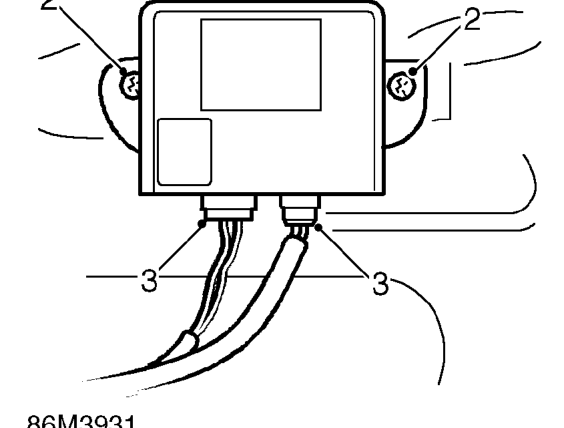

Window lift ecu – Remove drivers door trim casing. See BODY, Interior trim components.
  1. Remove 2 screws securing window lift ECU to door.
  2. Disconnect 2 multiplugs from ECU.

Refit

  1. Connect multiplugs to ECU.
  2. Position ECU to door, fit and tighten screws.
  3. Fit door trim casing. See BODY, Interior trim components.
