ElectricalCoaxial cable · page 1 of 3

COAXIAL CABLE

Service repair no - 86.50.24

Remove

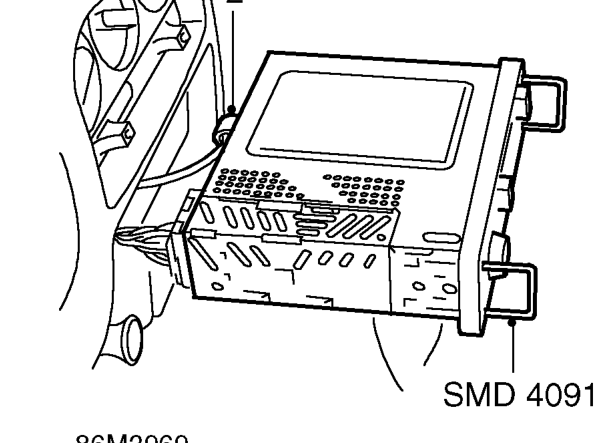

  1. Fit radio removal tools SMD 4091 to release retaining clips. Pull on tools to release radio from fascia.
Coaxial cable – Fit radio removal tools SMD 4091 to release retaining clips. Pull on tools to release radi
  1. Disconnect coaxial cable from radio.
  2. Remove glove box. See BODY, Interior trim components.
Coaxial cable – Remove glove box. See BODY, Interior trim components.

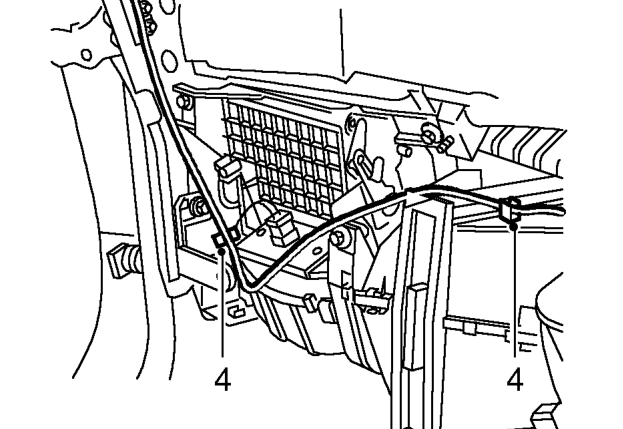

  1. Release coaxial cable from 2 clips on heater/blower assembly.
  2. Remove both ’A’ post upper trim casings. See BODY, Interior trim components.
Coaxial cable – Remove both ’A’ post upper trim casings. See BODY, Interior trim components.

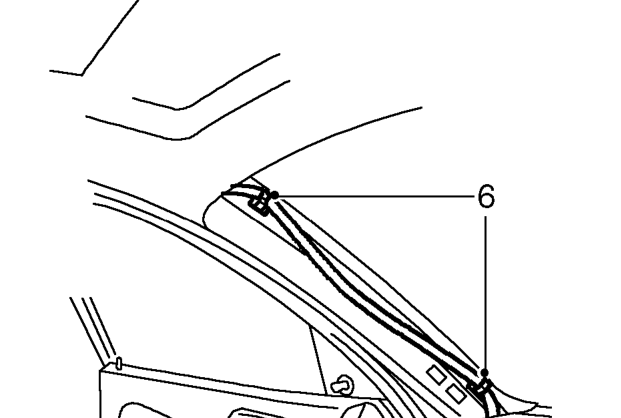

  1. Release coaxial cable from 2 clips on LH ’A’ post.
Coaxial cable – Release coaxial cable from 2 clips on LH ’A’ post.

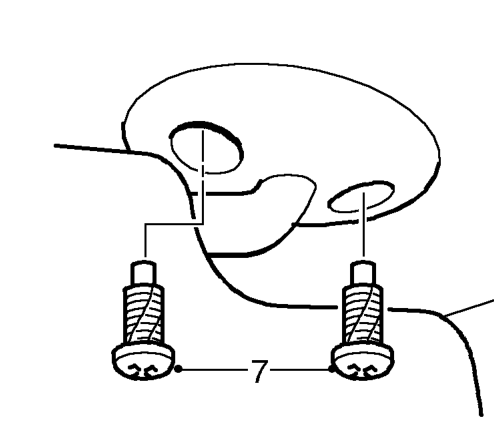

  1. Remove 2 screws securing each sun visor to roof.
  2. Remove both sun visors.
