AUTOMATIC GEAR SELECTOR BULB

Service repair no - 86.45.40

Remove

  1. Remove front console. See BODY, Interior trim components.
Automatic gear selector bulb – Remove front console. See BODY, Interior trim components.

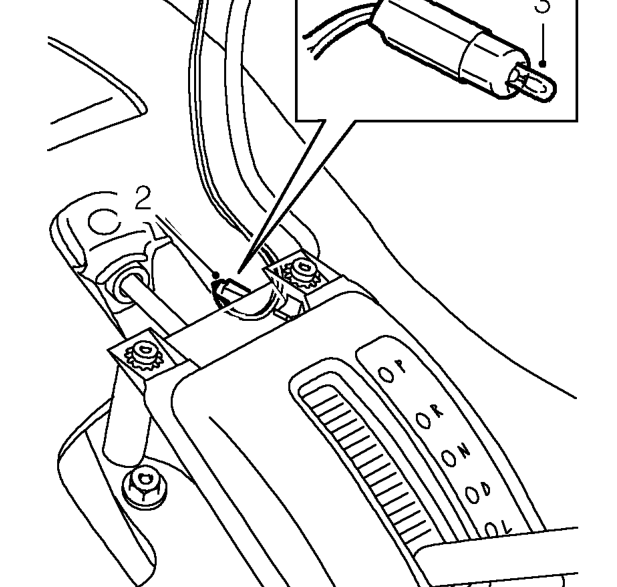

  1. Release bulb holder from selector nacelle.
  2. Remove bulb from holder.

Refit

  1. Fit new bulb to holder and secure to selector nacelle.
  2. Fit front console. See BODY, Interior trim components.

STARTER MOTOR - AUTOMATIC GEARBOX

Service repair no - 86.60.01

Remove

  1. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
Starter motor - automatic gearbox – Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

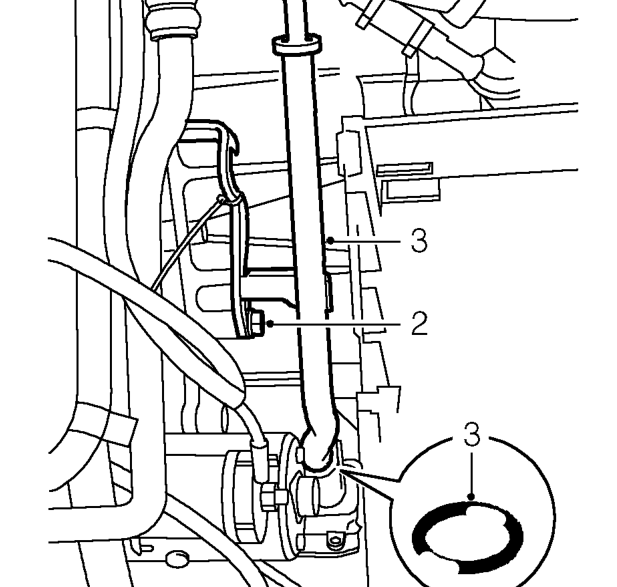

  1. Remove bolt securing dipstick tube to gearbox.
  2. Remove dipstick tube from gearbox and collect ’O’ ring.
Starter motor - automatic gearbox – Remove dipstick tube from gearbox and collect ’O’ ring.

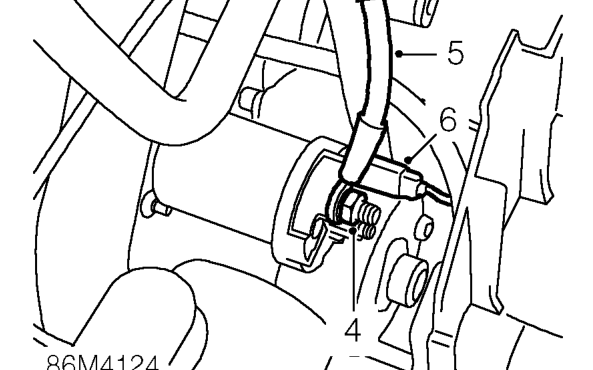

  1. Remove nut securing positive battery lead to starter solenoid.
  2. Release lead from solenoid and collect spring washer.
  3. Disconnect Lucar from solenoid.
