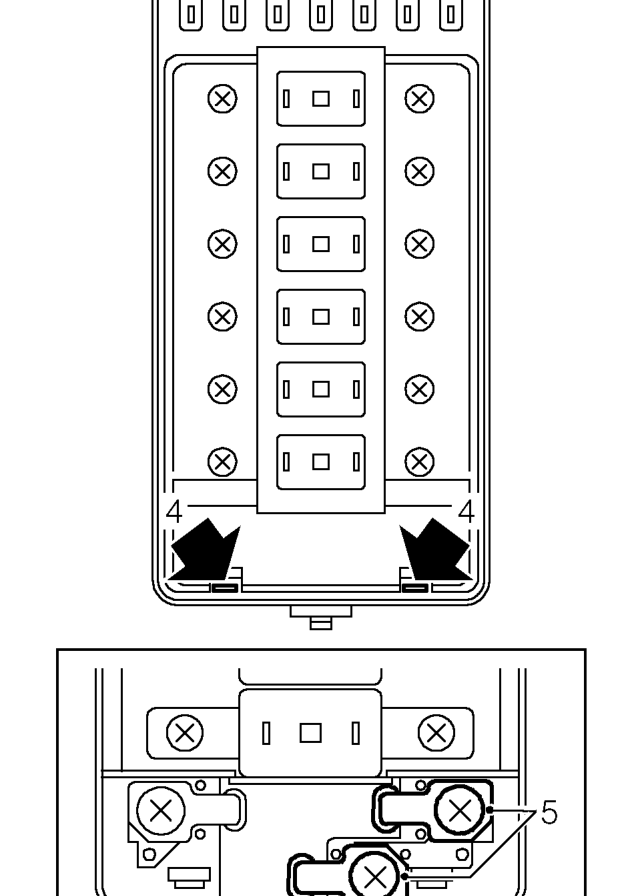

4. Release 2 clips and remove fusebox inner cover.
5. Remove 2 screws securing positive leads to fusebox.

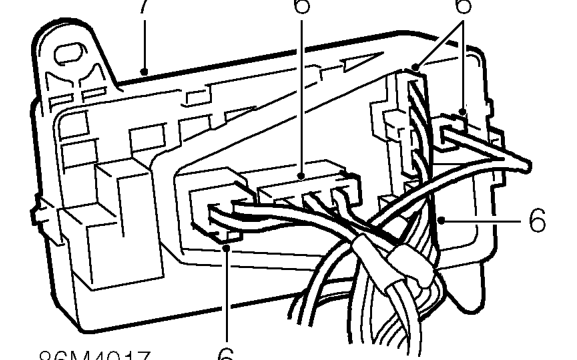

6. Disconnect 5 multiplugs from fuse box.
7. Remove fuse box.

Refit

1. Position fuse box and connect multiplugs.
2. Fit positive leads to fuse box and secure with screws.
3. Fit fuse box inner cover.
4. Fit fuse box cover.
5. Position fuse box to body, fit bolts and tighten to 10 Nm.
6. Connect both battery leads, earth lead last.
