ElectricalLuggage compartment lamp

LUGGAGE COMPARTMENT LAMP

Service repair no - 86.45.16

Remove

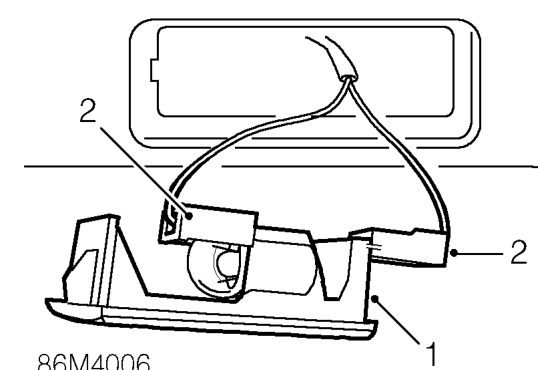

Luggage compartment lamp – Service repair no - 86.45.16
  1. Release luggage compartment lamp from parcel tray support panel.
  2. Disconnect 2 Lucar connectors and remove lamp.

Refit

  1. Position lamp to support panel and connect Lucars.
  2. Fit lamp to support panel.

HEATER CONTROL ILLUMINATION BULB

Service repair no - 86.45.41

Remove

  1. Remove front console. See BODY, Interior trim components.

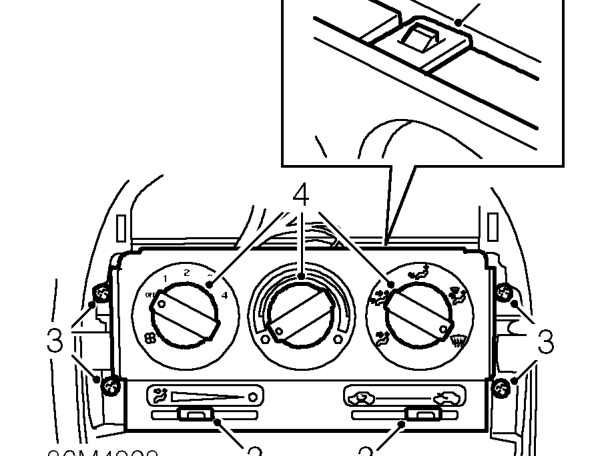

Heater control illumination bulb – Remove front console. See BODY, Interior trim components.
  1. Remove knobs from fresh air and air recirculation controls.
  2. Remove 4 screws securing heater control panel to fascia and lower control panel.
  3. Remove knobs from heater controls.

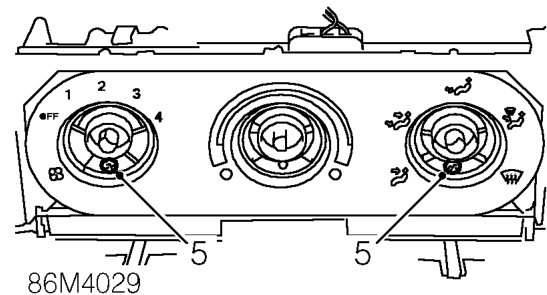

Heater control illumination bulb – Remove knobs from heater controls.
  1. Remove 2 screws securing faceplate to heater controls.
  2. Release 6 clips securing faceplate to heater controls and release faceplate.
