ElectricalAlternator - ’l’ series without air conditioning · page 2 of 2

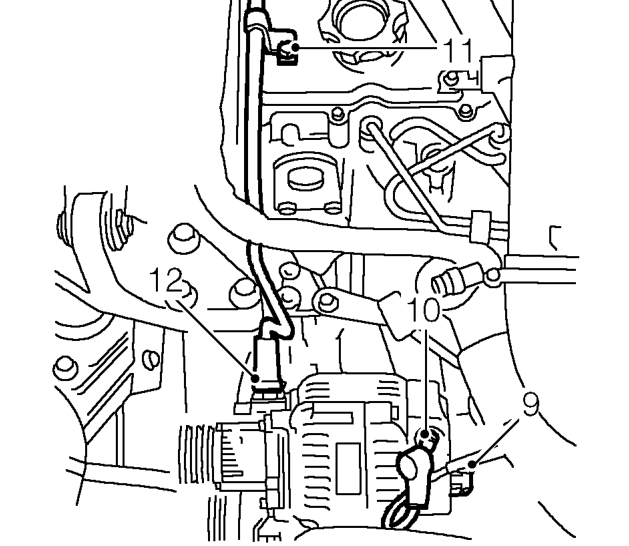

Diagram
  1. Disconnect multiplug from alternator.
  2. Release cover, remove nut and disconnect battery cable from alternator.
  3. Remove bolt securing brake servo vacuum pipe to camshaft cover.
  4. Release clip and disconnect vacuum hose from vacuum pump.

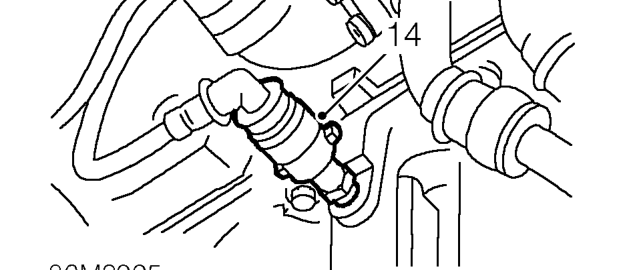

  5. Position drain tin to collect oil spillage.
Position drain tin to collect oil spillage.

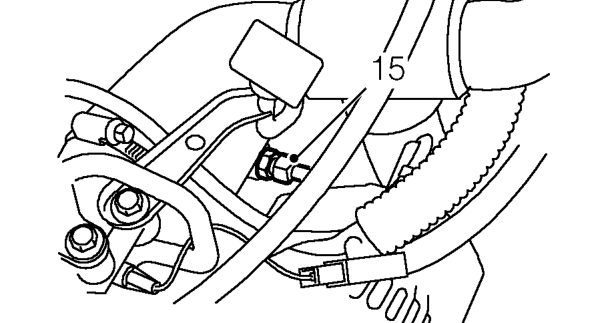

  1. Disconnect vacuum pump oil return pipe from sump.
Disconnect vacuum pump oil return pipe from sump.
  1. Disconnect vacuum pump oil feed pipe union from cylinder block.

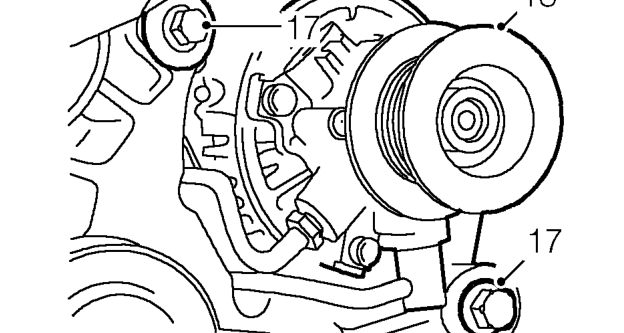

  2. Raise engine on jack to remove alternator bolt.
Raise engine on jack to remove alternator bolt.
  1. Remove 2 bolts securing alternator to mounting bracket.
  2. Remove alternator from vehicle.

CAUTION: Plug the connections.

Do not carry out further dismantling if component is removed for access only.

  1. Transfer vacuum pump to new alternator. See BRAKES, Repairs.
