BrakesHandbrake warning switch · page 1 of 2

HANDBRAKE WARNING SWITCH

Service repair no - 70.35.40

Remove

  1. Remove rear console. See BODY, Interior trim components.

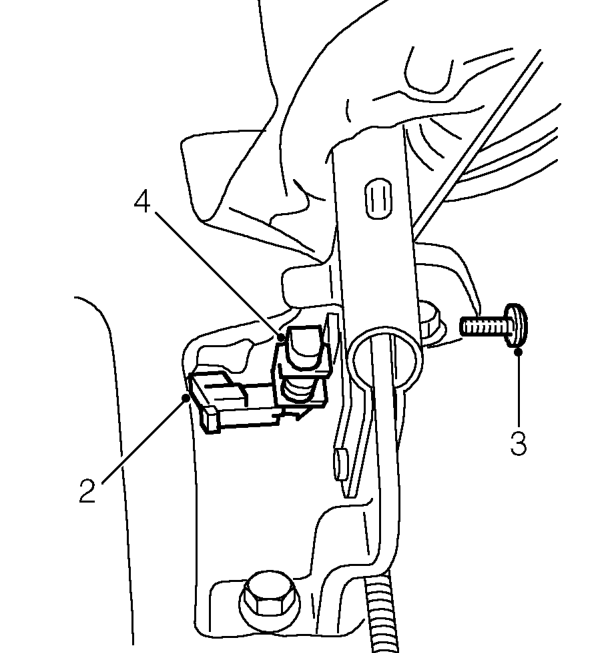

Handbrake warning switch – Remove rear console. See BODY, Interior trim components.
  1. Disconnect Lucar from switch.
  2. Remove screw securing switch to handbrake.
  3. Remove switch from handbrake.

Refit

  1. Fit switch to handbrake and tighten screw to 5 Nm.
  2. Connect Lucar to switch.
  3. Fit rear console. See BODY, Interior trim components.

BRAKE LIGHT SWITCH

Service repair no - 70.35.42

Remove

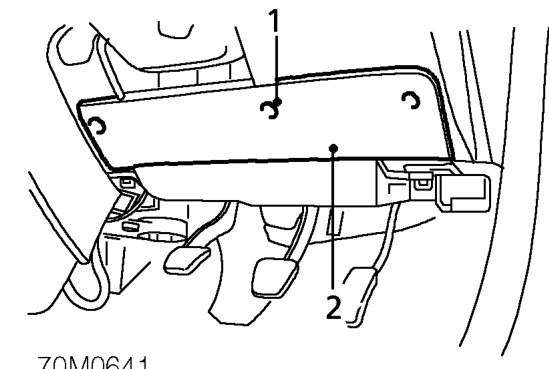

Brake light switch – Service repair no - 70.35.42
  1. Release 3 turnbuckles securing fuse box cover to lower fascia.
  2. Remove fuse box cover.

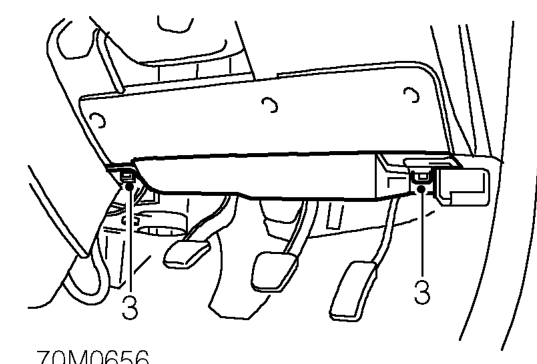

Brake light switch – Remove fuse box cover.
  1. Release 2 turnbuckles securing closing panel to underside of fascia.
  2. Remove closing panel.
