Handbrake warning switch (page 2 of 2)

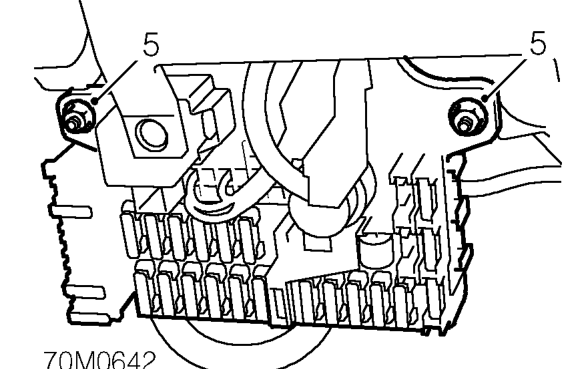

5. Remove 2 nuts securing passenger compartment fuse box to mounting bracket.
6. Release fuse box from mounting bracket.

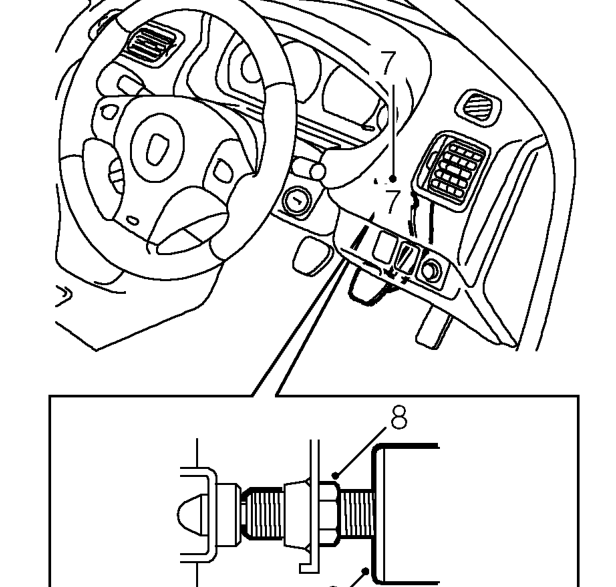

7. Disconnect multiplug from brake light switch.
8. Loosen locknut securing brake light switch to pedal box.
9. Remove brake light switch.

Refit

1. Fit brake light switch.
2. Adjust brake light switch. See Adjustments.
3. Connect multiplug to brake light switch.
4. Fit fuse box to mounting bracket, fit nuts and tighten to 10 Nm.
5. Position closing panel to underside of fascia and secure with turnbuckles.
6. Fit fuse box cover and secure with turnbuckles.
