Brake servo vacuum pump - ’l’ series

BRAKE SERVO VACUUM PUMP - ’L’ SERIES

Service repair no - 70.50.19

Remove

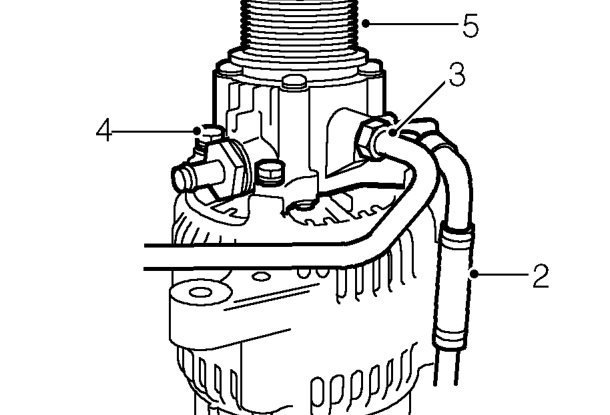

1. Remove alternator. See ELECTRICAL, Repairs.

2. Remove clip and disconnect oil return hose from vacuum pump.
3. Loosen union and disconnect oil feed pipe from vacuum pump.
4. Remove 4 bolts securing vacuum pump to alternator.
5. Remove vacuum pump.

Refit

1. Clean mating face of alternator and vacuum pump.
2. Fit vacuum pump to alternator, fit bolts and tighten to 8 Nm.
3. Connect oil feed pipe to vacuum pump but do not tighten union.
4. Connect oil return hose to vacuum pump and secure with clip.
5. Fit alternator. See ELECTRICAL, Repairs.

FRONT BRAKE PADS

Service repair no - 70.40.02

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

WARNING: Brake pads must be renewed in axle sets only. Braking efficiency may otherwise be impaired.

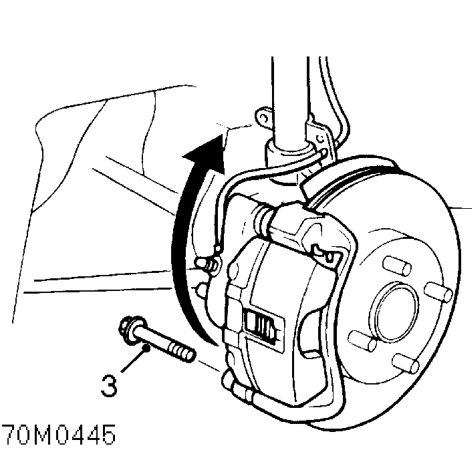

3. Remove lower guide pin bolt from caliper and pivot caliper upwards.

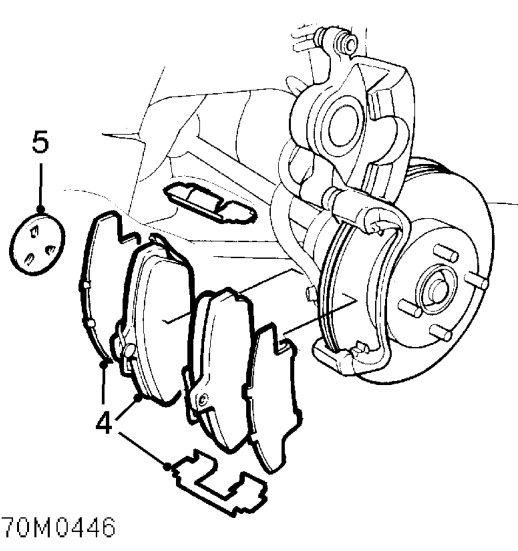

4. Remove 2 brake pads, shims and retainers from caliper bracket.
5. Remove inner shim from caliper piston.
