REAR BRAKE PADS

Service repair no - 70.40.10

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

WARNING: Brake pads must be renewed in axle sets only. Braking efficiency may otherwise be impaired.

Rear brake pads – Remove road wheel(s).

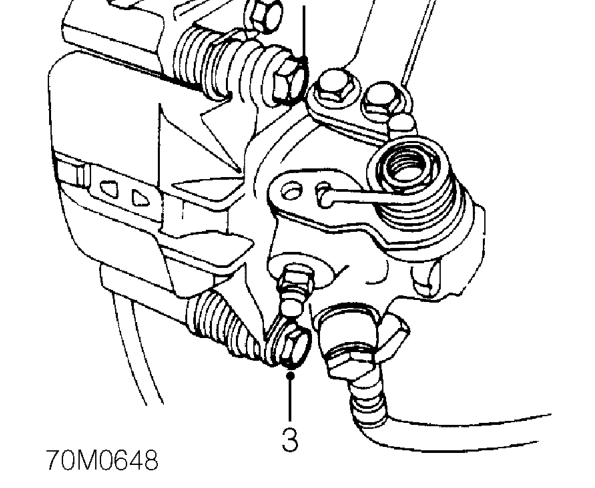

  1. Remove 2 guide pin bolts securing caliper to carrier.
Rear brake pads – Remove 2 guide pin bolts securing caliper to carrier.

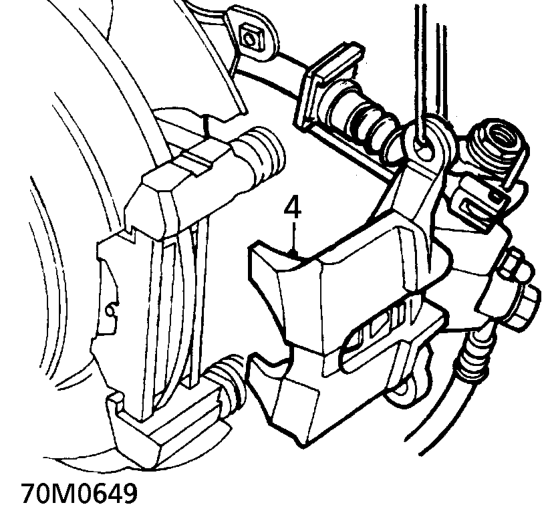

  1. Release caliper from carrier and tie aside.
Rear brake pads – Release caliper from carrier and tie aside.

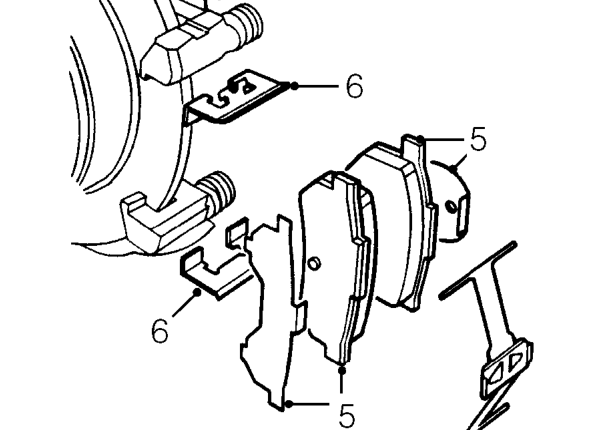

  1. Remove brake pads and shims.
  2. Remove pad abutment shims.
  3. Examine disc for wear, cracking and scoring.
  4. Clean dust from caliper using brake cleaning fluid or industrial alcohol.

WARNING: Do not use an air line to blow dust from brake assembly. Do not use petroleum based fluid as damage will occur to rubber components.

  1. Examine caliper for signs of fluid leakage.
