BrakesServo assembly

SERVO ASSEMBLY

Service repair no - 70.50.01

Remove

  1. Remove brake master cylinder. See this section.
Servo assembly – Remove brake master cylinder. See this section.

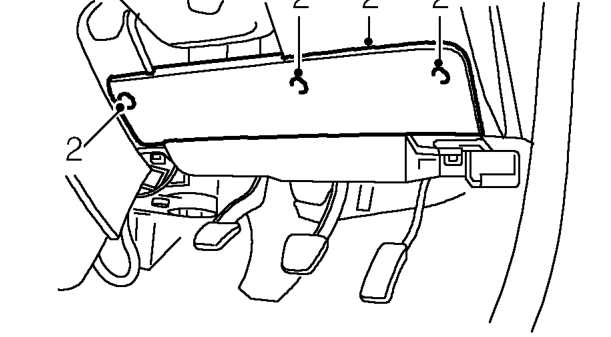

  1. Disengage 3 turnbuckles and remove fusebox cover.
Servo assembly – Disengage 3 turnbuckles and remove fusebox cover.

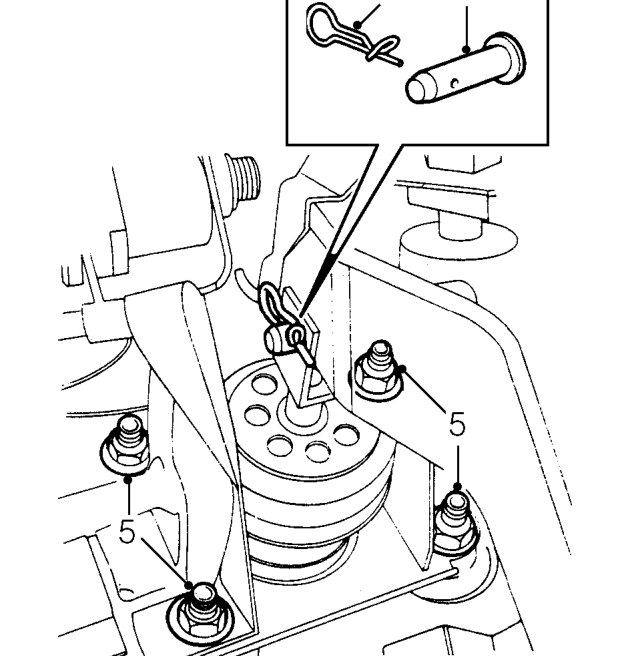

  1. Remove and discard spring clip from clevis pin.
  2. Remove clevis pin securing brake pedal servo push rod.
  3. Remove 4 flange nuts securing servo to body.
Servo assembly – Remove 4 flange nuts securing servo to body.

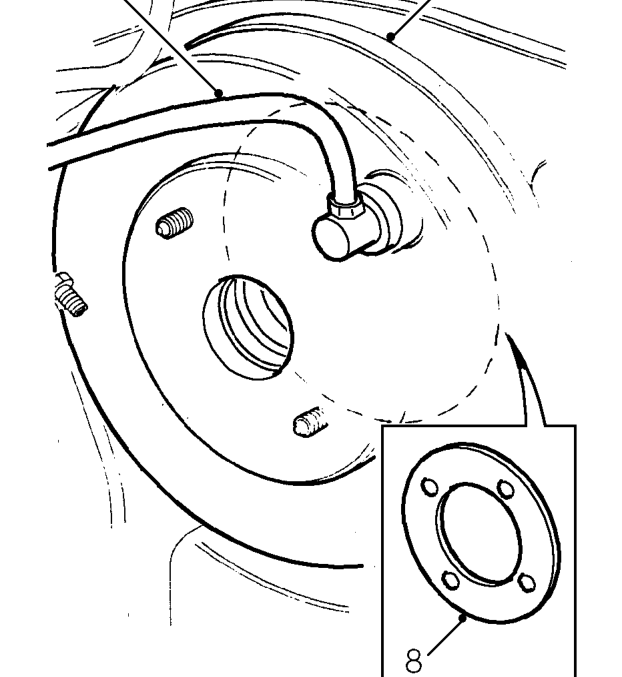

  1. Release vacuum hose from servo.
  2. Remove servo assembly.
  3. Remove gasket from servo.

Refit

CAUTION: The domed nut on the push rod must not be adjusted. The servo gasket acts as a spacer, the correct gasket must be fitted.

  1. Fit gasket to servo.
  2. Fit servo to bulkhead, vacuum connection uppermost, tighten nuts to 13 Nm.
  3. Align push rod to brake pedal, fit clevis pin and secure with NEW spring clip.
  4. Grease clevis pin.
  5. Fit fuse box cover and secure turnbuckles.
  6. Connect brake vacuum hose to servo. Fit brake master cylinder. See this section.
