ABS SENSOR - REAR - MODELS WITH DRUM BRAKES

Service repair no - 70.65.31

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove rear brake drum. See this section.

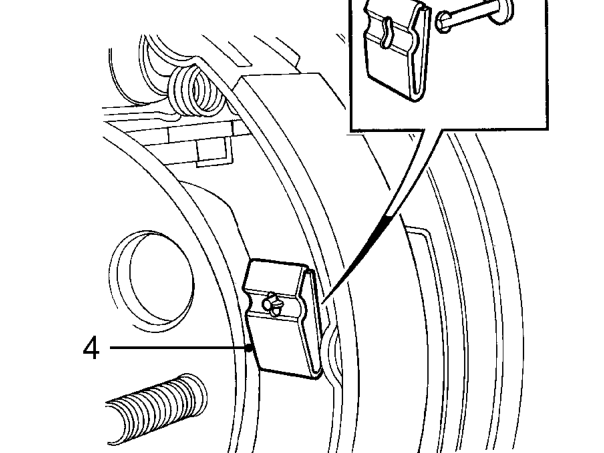

Abs sensor - rear - models with drum brakes – Remove rear brake drum. See this section.
  1. Remove 2 clips and 2 pins retaining brake shoes.

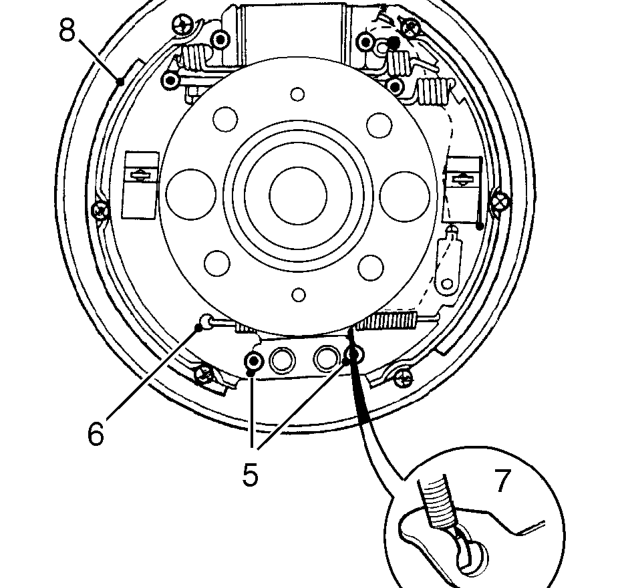

Abs sensor - rear - models with drum brakes – Remove 2 clips and 2 pins retaining brake shoes.
  1. Ease one brake shoe out of retaining groove in abutment followed by other shoe.
  2. Detach return spring from leading shoe end and remove spring.

NOTE: The forward shoe is the LEADING shoe, the TRAILING shoe has the handbrake lever attached to it.

  1. Release hand brake cable from brake shoe lever.
  2. Manoeuvre shoe assembly around wheel cylinder and remove.

CAUTION: Ensure edges of brake shoes do not damage wheel cylinder dust covers.
