Front brake disc

Refit

1. Fit NEW sealing ring to wheel cylinder.
2. Fit wheel cylinder to backplate, tighten bolts to 8 Nm.
3. Connect brake pipe to wheel cylinder, tighten union to 19 Nm.
4. Smear shoe contact points with Molykote 111 grease, ensure grease does not contact linings or dust covers.
5. Fit rear brake shoes. See this section.
6. Bleed brakes. See Adjustments.
7. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
8. Remove stand(s) and lower vehicle.
9. Check handbrake operation and adjust if necessary. See Adjustments.

FRONT BRAKE DISC

Service repair no - 70.10.10

Remove

CAUTION: Brake discs must be renewed in pairs, unless one disc requires changing before 1000 miles (1500 km) from new.

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove road wheel(s).

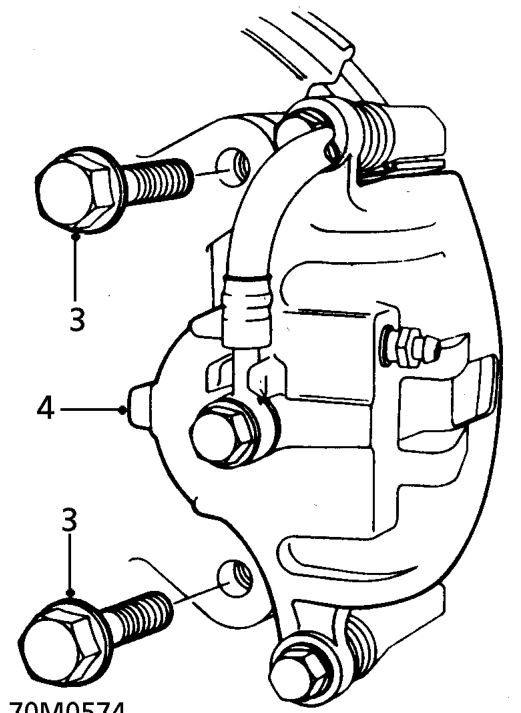

3. Remove 2 bolts securing brake caliper to swivel hub.
4. Release caliper and tie aside clear of brake disc.

CAUTION: Do not allow caliper to hang on brake hose.
