Rover 200 Workshop Manual (1995-1999)25 · Brakes
25 · Brakes

Front brake caliper

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Front brake caliper
BrakesFront brake caliper

FRONT BRAKE CALIPER

Service repair no - 70.55.24

Remove

  1. Raise front of vehicle, one side.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Clamp brake hose to prevent fluid loss.

CAUTION: A brake hose clamp must be used.

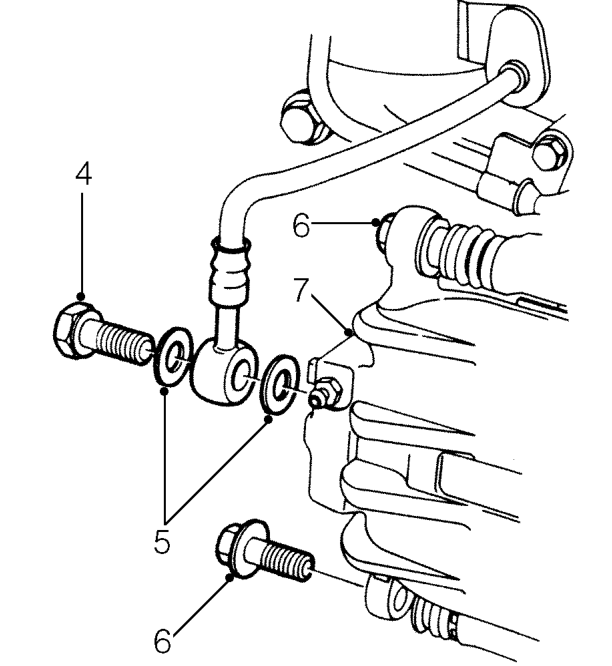

Front brake caliper – Clamp brake hose to prevent fluid loss.
  1. Remove brake hose banjo bolt.
  2. Discard 2 sealing washers

CAUTION: Plug the connections.

  1. Remove 2 guide pin bolts.
  2. Remove caliper housing from carrier.

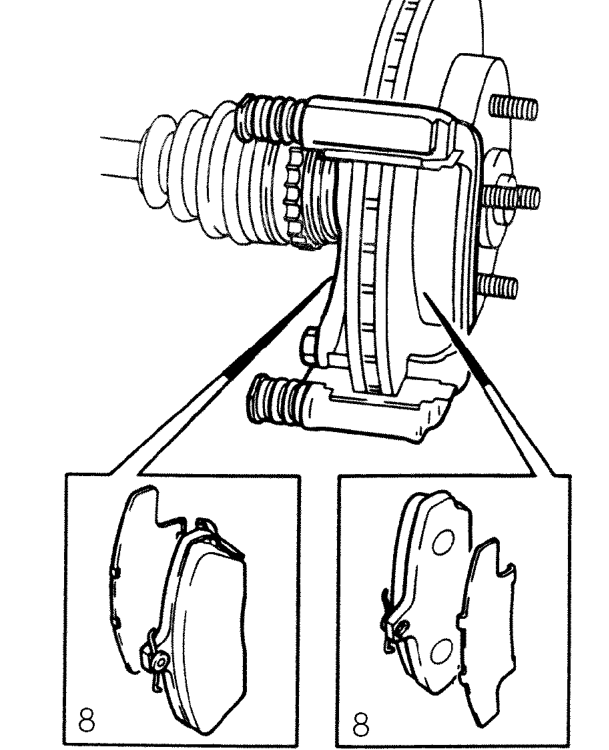

Front brake caliper – Remove caliper housing from carrier.
  1. Remove 2 brake pads, shims and retainers from caliper bracket.
  2. Remove inner shim from caliper piston.
