BrakesRear brake disc

REAR BRAKE DISC

Service repair no - 70.10.33

Remove

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Rear brake disc – Remove road wheel(s).

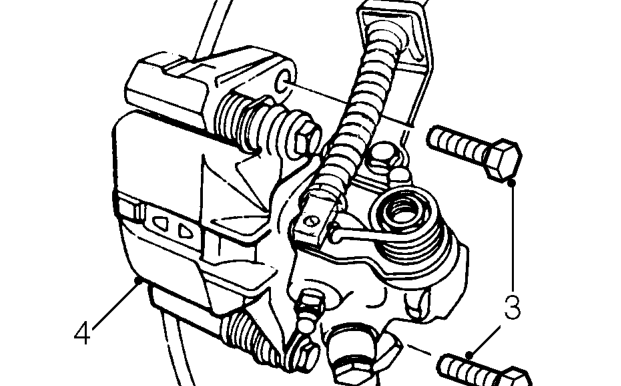

  1. Remove 2 bolts securing caliper to stub axle.
  2. Release caliper and tie aside.
Rear brake disc – Release caliper and tie aside.

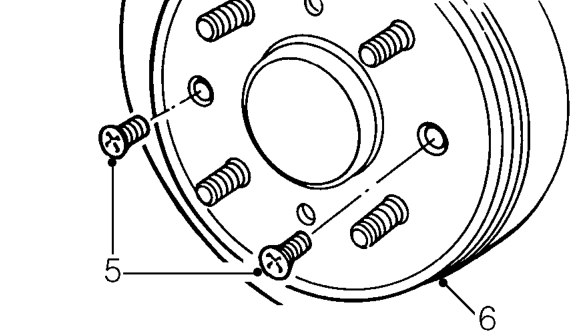

  1. Remove 2 screws securing brake disc to hub.
  2. Remove disc from hub, use jacking screws if necessary.

Refit

  1. Clean hub and disc mating surfaces.
  2. Fit disc to hub. Fit and tighten screws to 10 Nm.
  3. Clean caliper and stub axle mating faces.
  4. Fit caliper to stub axle ensuring brake pads are correctly located each side of disc. Fit bolts and tighten to 108 Nm.
  5. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  6. Remove stand(s) and lower vehicle.
