Brake light switch (Brakes)

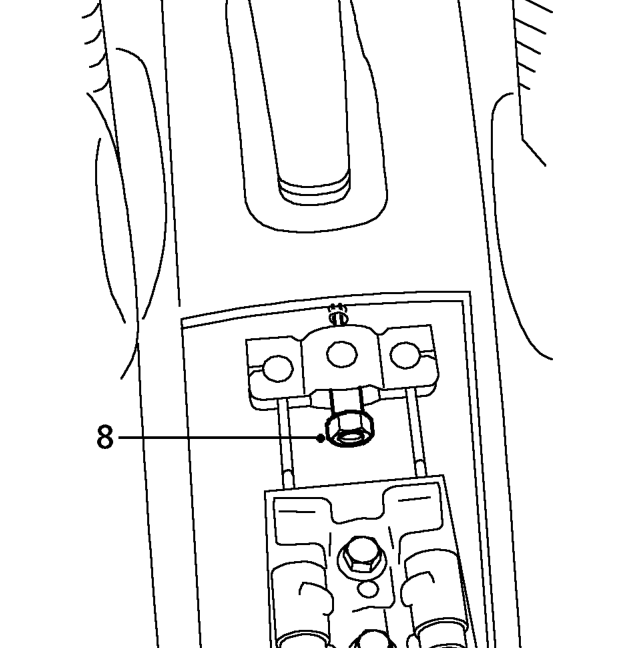

8. Tighten equaliser adjusting nut until rear wheels drag slightly when turned.
9. Release handbrake lever and check that rear wheels do not drag when turned. readjust if necessary.
10. Apply handbrake one notch at a time and count the number of notches until both rear wheels lock. Readjust if necessary.
11. Release handbrake lever.
12. Fit ash tray to rear console.
13. Remove stand(s) and lower vehicle.

BRAKE LIGHT SWITCH

Service repair no - 70.35.41

Adjust

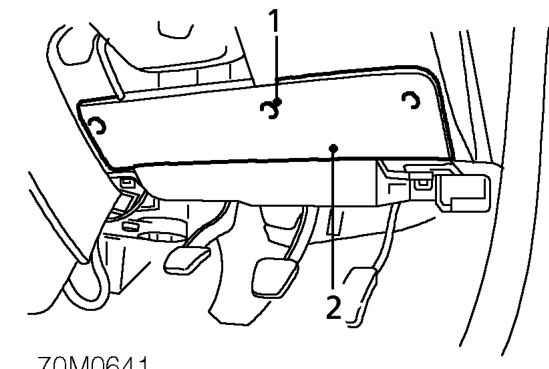

1. Release 3 turnbuckles securing fuse box cover to lower fascia.
2. Remove fuse box cover.

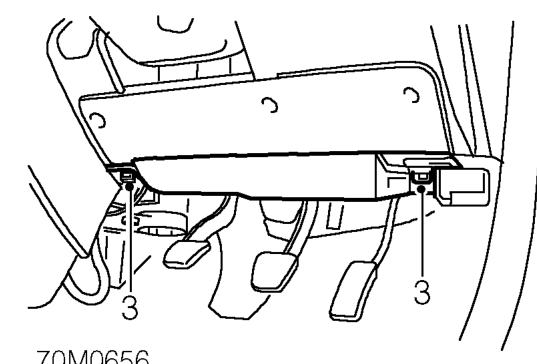

3. Release 2 turnbuckles securing closing panel to underside of fascia.
4. Remove closing panel.
