BRAKE LIGHT SWITCH - MODELS WITH BOSCH ECM

Service repair no - 70.35.41

Adjust

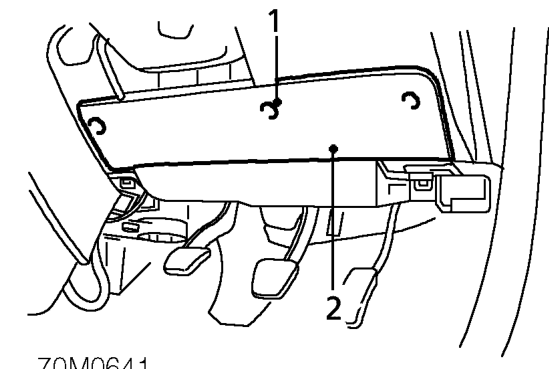

Brake light switch - models with bosch ecm – Service repair no - 70.35.41
  1. Release 3 turnbuckles securing fuse box cover to lower fascia.
  2. Remove fuse box cover.

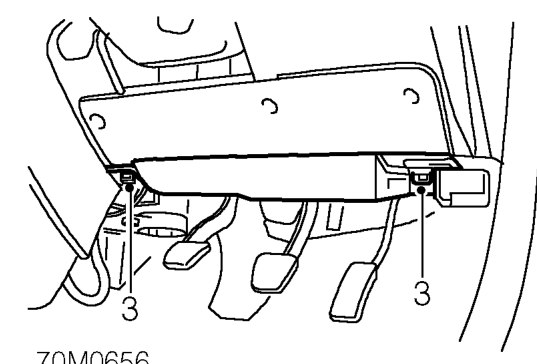

Brake light switch - models with bosch ecm – Remove fuse box cover.
  1. Release 2 turnbuckles securing closing panel to underside of fascia.
  2. Remove closing panel.

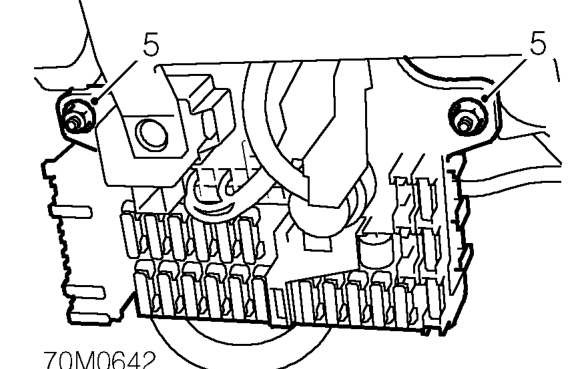

Brake light switch - models with bosch ecm – Remove closing panel.
  1. Remove 2 nuts securing passenger compartment fuse box to mounting bracket.
  2. Release fuse box from mounting bracket.

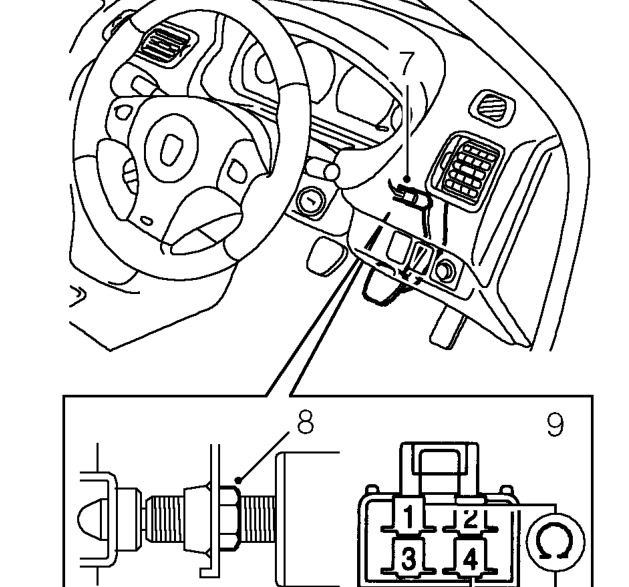

Brake light switch - models with bosch ecm – Release fuse box from mounting bracket.
  1. Disconnect multiplug from brake light switch.
  2. Loosen locknut securing brake light switch to pedal box.
  3. Connect an ohmmeter across switch terminal 1 and 4.
