Rover 200 Workshop Manual (1995-1999)22 · Steering
22 · Steering & suspension

Manual steering rack (page 2 of 2)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
SteeringManual steering rack · page 2 of 2
Diagram

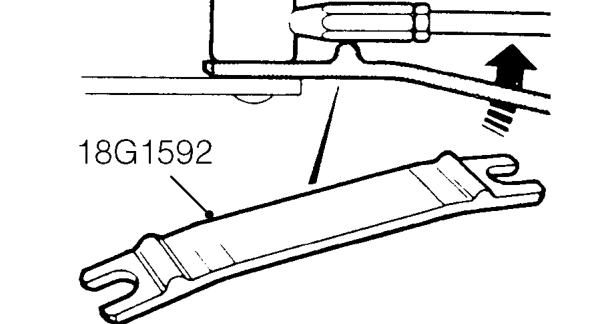

  1. Using tool 18G 1592 release gear selector linkage ball joint from gear selector lever.
  2. Using tool 18G 1592 release gear change linkage ball joint from gear change lever.
  3. Remove engine steady bar. See ENGINE - ’K8’, Repairs.
Remove engine steady bar. See ENGINE - ’K8’, Repairs.

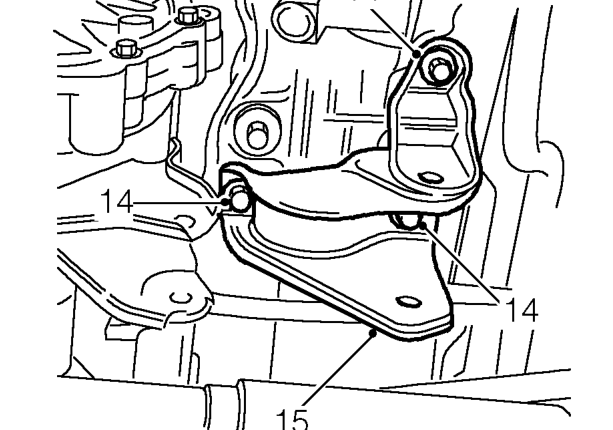

  1. Remove 3 bolts securing engine steady bar mounting to rear beam.
  2. Remove mounting.
Remove mounting.

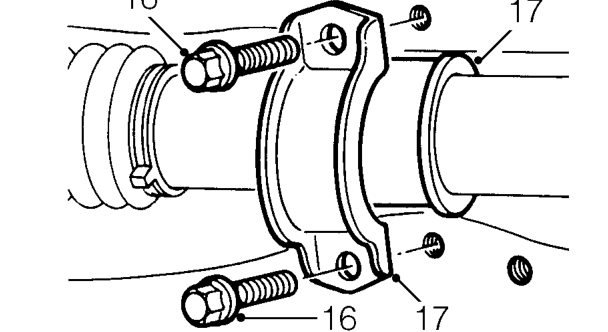

  1. Remove 2 bolts securing steering rack clamp.
  2. Remove clamp and collect rubber.
Remove clamp and collect rubber.

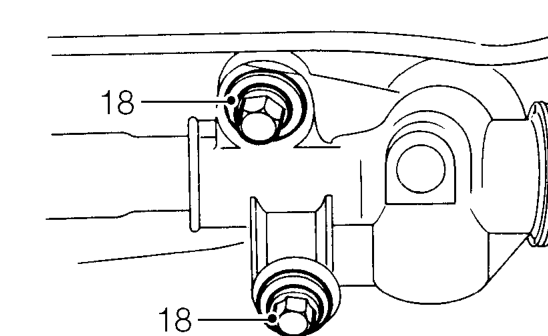

  1. Remove 2 flange bolts securing steering rack to rear beam.
  2. Lower steering rack sufficiently to release pinion shaft from body aperture.
  3. Manoeuvre rack free of vehicle.
