Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Camshaft front oil seal

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Camshaft front oil seal
Engine - K8Camshaft front oil seal

CAMSHAFT FRONT OIL SEAL

Service repair no - 12.13.05

Remove

  1. Remove and discard camshaft timing belt. See this section.
Camshaft front oil seal – Remove and discard camshaft timing belt. See this section.

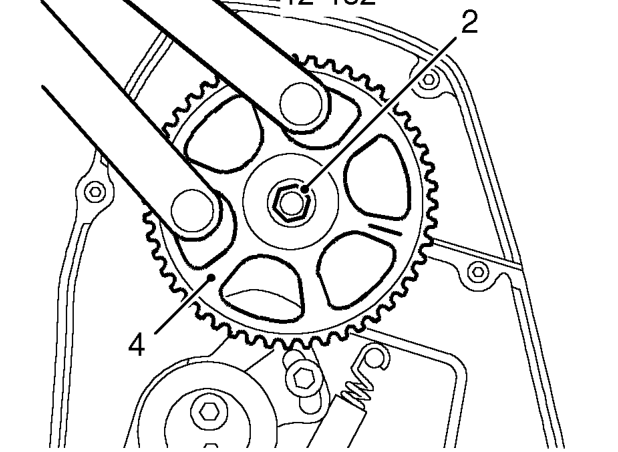

  1. Using tool 12-182, hold camshaft gear against rotation and loosen centre bolt.
  2. Remove centre bolt and plain washer from camshaft gear.
  3. Remove camshaft gear.
Camshaft front oil seal – Remove camshaft gear.

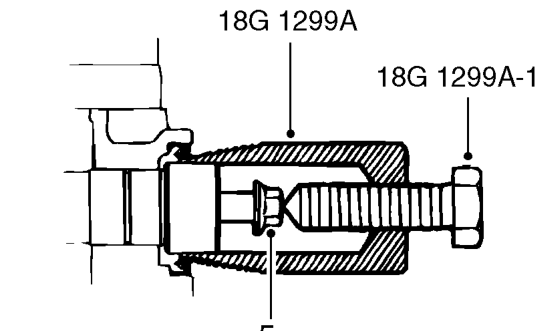

  1. Fit camshaft gear centre bolt to camshaft.
  2. Fit tool 18G 1299A into camshaft seal.
  3. Remove oil seal by tightening centre bolt 18G 1299A-1
  4. Remove centre bolt from camshaft.

Refit

  1. Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are removed. DO NOT use a scraper as this may damage sealing surfaces.
Camshaft front oil seal – Clean sealing area of cylinder head and camshaft, ensuring all traces of rubber are remove

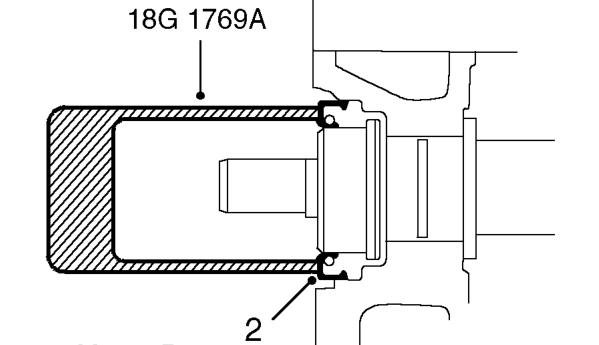

  1. Using tool 18G 1769A fit new camshaft oil seal.

NOTE: This oil seal is coloured BLACK.

CAUTION: Oil seal must be fitted dry. Do not use tool 18G 1769.

  1. Align timing mark and fit camshaft gear.
  2. Fit centre bolt and plain washer to camshaft gear.
