Camshaft cover gasket

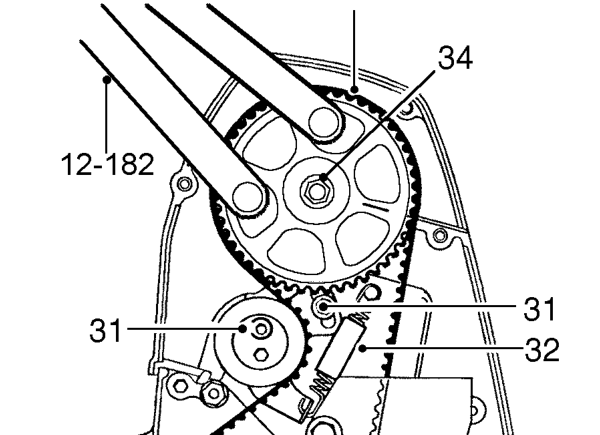

31. Position camshaft timing belt tensioner to engine and fit centre bolt and backplate screw.
32. Fit camshaft timing belt tensioner spring.
33. Fit camshaft gear to camshaft ensuring timing marks on camshaft gear and rear cover are aligned.
34. Fit bolt and washer securing camshaft gear to camshaft. Using tool 12-182 restrain camshaft gear and tighten bolt to: M8 Bolt - 35 Nm M10 Bolt - 65 Nm
35. Fit new camshaft timing belt. See this section.
36. Fit exhaust manifold. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
37. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
38. Connect battery earth lead.
39. Refill engine cooling system. See COOLING SYSTEM - ’K’ SERIES, Repairs.
40. Adjust throttle cable. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.

CAMSHAFT COVER GASKET

Service repair no - 12.29.40

Remove

1. Disconnect battery earth lead.

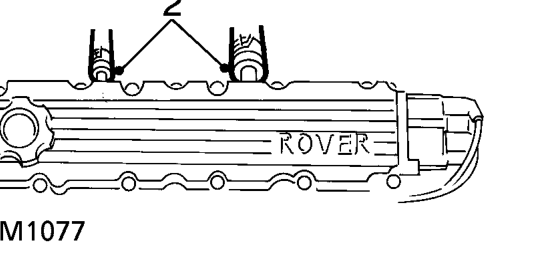

2. Release 2 clips and disconnect 2 breather hoses from camshaft cover.

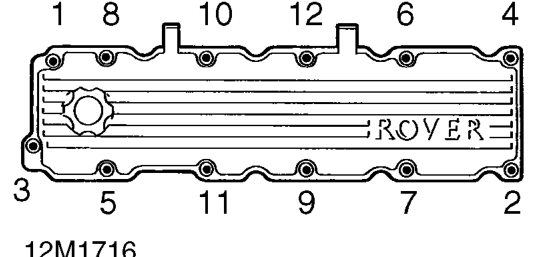

3. Using sequence shown, progressively loosen and remove 12 bolts securing camshaft cover.
4. Remove camshaft cover.

NOTE: The gasket is re-usable and should remain attached to camshaft cover.

5. Check condition of sealing path. It should be complete and attached to gasket. Remove gasket from camshaft cover only if sealing path is damaged or detached from gasket.
