Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Dipstick tube

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Dipstick tube
Engine - K8Dipstick tube

DIPSTICK TUBE

Service repair no - 12.60.09

Remove

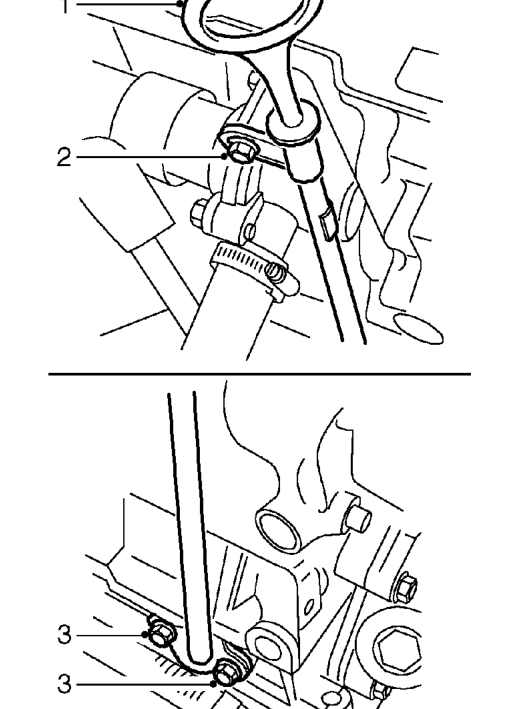

Dipstick tube – Service repair no - 12.60.09
  1. Remove dipstick.
  2. Remove bolt securing thermostat housing and dipstick tube to cylinder block.
  3. Remove 2 bolts securing dipstick tube to cylinder block.
  4. Remove dipstick tube and collect gasket.

Refit

  1. Fit new gasket and dipstick tube to cylinder block.
  2. Fit bolts securing dipstick tube to cylinder block and tighten to 10 Nm.
  3. Fit bolt securing dipstick tube and thermostat housing to cylinder block and tighten to 10 Nm.
  4. Fit dipstick.

OIL PUMP

Service repair no - 12.60.26

Remove

  1. Remove camshaft timing belt. See this section.
  2. Remove crankshaft gear.

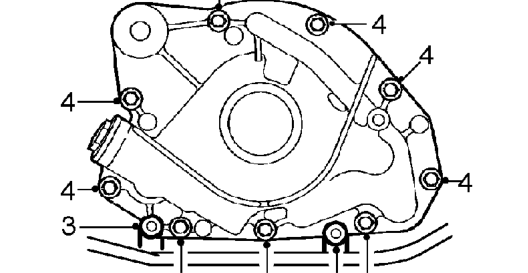

Oil pump – Remove crankshaft gear.
  1. Remove 2 bolts securing engine harness to oil pump.
  2. Remove and discard 9 bolts securing oil pump to cylinder block.

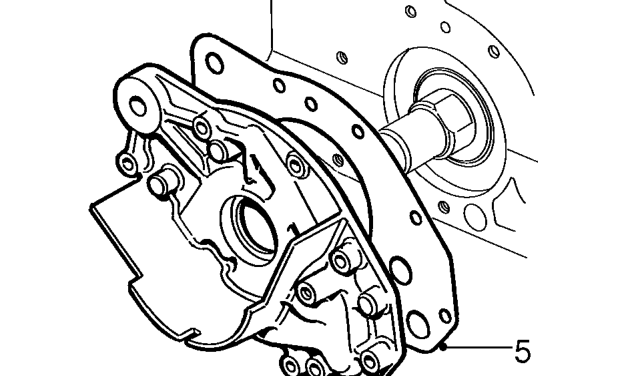

Oil pump – Remove and discard 9 bolts securing oil pump to cylinder block.
  1. Remove oil pump and discard gasket.
