Engine - K8Crankshaft front oil seal

CRANKSHAFT FRONT OIL SEAL

Service repair no - 12.21.14

Remove

  1. Remove camshaft timing belt. See this section.
Crankshaft front oil seal – Remove camshaft timing belt. See this section.
  1. Remove crankshaft gear.
Crankshaft front oil seal – Remove crankshaft gear.

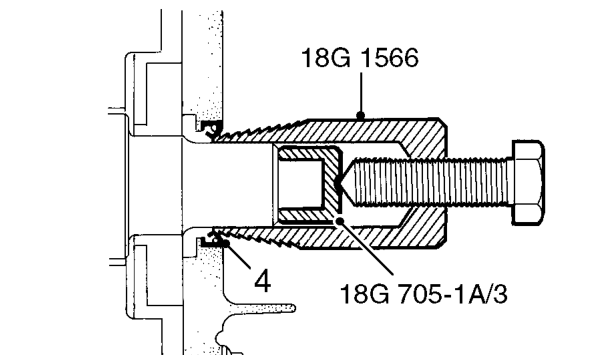

  1. Fit tool 18G 705-1A/3 to end of crankshaft.
  2. Ensure bore of tool 18G 1566 is free from burrs.
  3. Screw tool 18G 1566 into crankshaft front oil seal.
  4. Tighten centre bolt of tool 18G 1566 to remove seal
  5. Discard crankshaft front oil seal.
  6. Remove 18G 705-1A/3 from crankshaft.

Refit

  1. Using a lint free cloth, thoroughly clean oil seal recess in oil pump and running surface on crankshaft.
Crankshaft front oil seal – Using a lint free cloth, thoroughly clean oil seal recess in oil pump and running surface

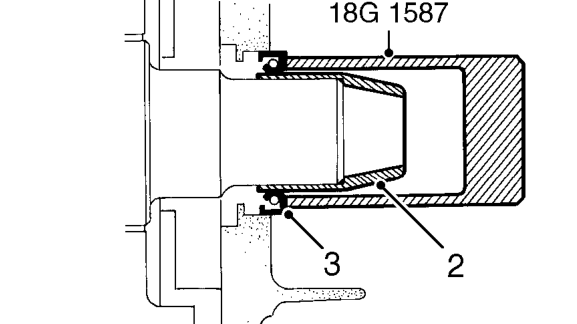

  1. Fit oil seal guide, from seal kit, over end of crankshaft.
  2. Position new seal on crankshaft up against oil pump housing. Drift seal into place using tool 18G 1587.

CAUTION: Oil seal must be fitted dry.

  1. Remove tool 18G 1587 and oil seal guide.
  2. Clean crankshaft gear.
  3. Fit crankshaft gear to crankshaft.
  4. Fit camshaft timing belt. See this section.
