Engine RH mounting

ENGINE RH MOUNTING

Service repair no - 12.45.31

Remove

1. Disconnect battery earth lead.

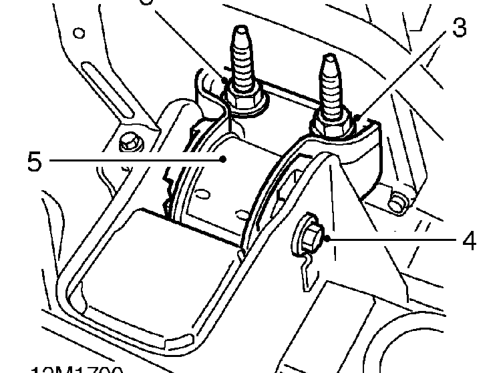

2. Fit wooden block to jack and position jack to support engine.

3. Remove and discard 2 nuts securing engine mounting to engine.
4. Remove through bolt securing engine mounting to body.
5. Remove engine mounting.
6. Remove 2 rubber washers from mounting.

Refit

1. Fit rubber washers to engine mounting.
2. Fit engine mounting to body and engine.
3. Fit through bolt securing engine mounting to body, but do not tighten.
4. Fit 2 new nuts securing engine mounting to engine and tighten to 100 Nm.
5. Tighten through bolt securing engine mounting to body, to 75 Nm.
6. Lower jack supporting engine and remove from beneath vehicle.
7. Connect battery earth lead.

FLYWHEEL

Service repair no - 12.53.07

Remove

1. Remove clutch assembly. See CLUTCH, Repairs.
2. Leave tool 18G 1571 attached to cylinder block.

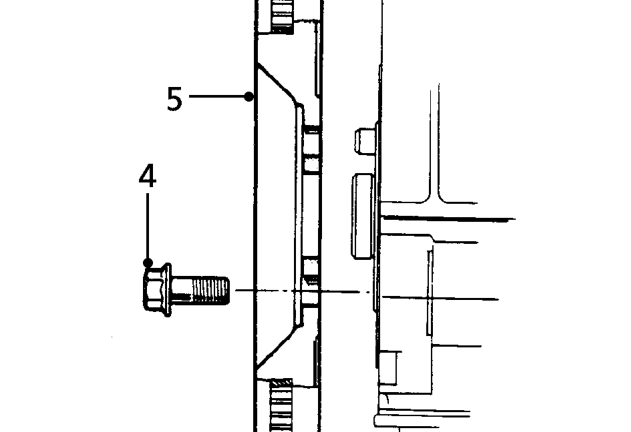

3. Remove crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

4. Remove and discard 6 bolts securing flywheel to crankshaft.
5. Remove flywheel from crankshaft.

Refit

1. Using a tap, clean adhesive from threads of flywheel bolt holes in crankshaft.
2. Clean flywheel and mating face of crankshaft.
3. Fit flywheel to crankshaft.
4. Fit NEW bolts securing flywheel to crankshaft and working in a diagonal sequence tighten bolts to 85 Nm.
5. Fit crankshaft position sensor. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
6. Fit clutch assembly. See CLUTCH, Repairs.
