Workshop Manuals Factory service & repair Rover
Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Camshaft timing belt lower cover

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Camshaft timing belt lower cover
Engine - K8Camshaft timing belt lower cover

CAMSHAFT TIMING BELT LOWER COVER

Service repair no - 12.65.43

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

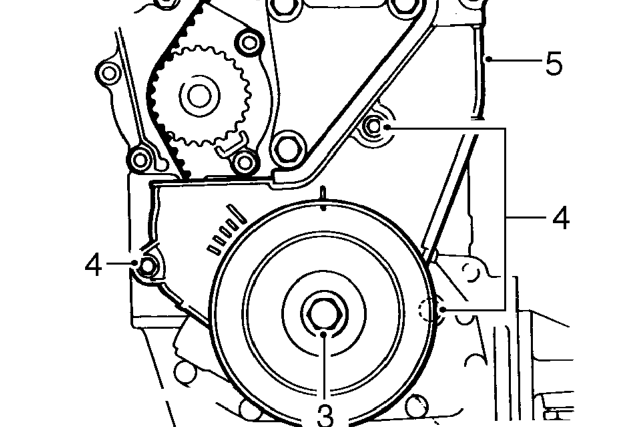

Camshaft timing belt lower cover – Raise front of vehicle.
  1. Remove crankshaft front pulley. See this section.
  2. Remove 3 bolts securing timing belt lower cover to engine.
  3. Remove timing belt lower cover.

Refit

  1. Fit timing belt lower cover to engine.
  2. Fit bolts securing cover to engine and tighten to 5 Nm.
  3. Fit crankshaft front pulley. See this section.
  4. Remove stand(s) and lower vehicle.
  5. Connect battery earth lead.
