Engine - K8Camshaft rear oil seal
  1. Using tool 12-182 hold camshaft gear against rotation and tighten centre bolt to: M8 Bolt - 35 Nm M10 Bolt - 65 Nm
  2. Check camshaft gear timing mark alignment.
  3. Fit new camshaft timing belt. See this section.

CAMSHAFT REAR OIL SEAL

Service repair no - 12.13.06

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove distributor cap. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

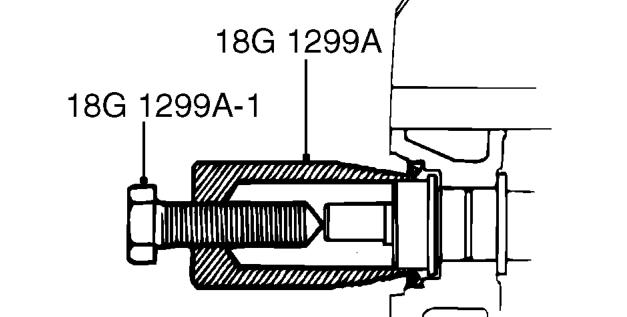

Camshaft rear oil seal – Remove distributor cap. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  1. Screw tool 18G 1299A into camshaft rear oil seal.
  2. Tighten centre bolt, tool 18G 1299A-1, to remove seal.
  3. Remove camshaft oil seal.
