Rover 200 Workshop Manual (1995-1999)05 · Engine - K8
05 · Engine

Crankshaft front pulley

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs › Crankshaft front pulley
Engine - K8Crankshaft front pulley · page 1 of 2

Refit

  1. Clean sealing area of cylinder head and camshaft carrier, ensuring all traces of rubber are removed. DO NOT use a scraper as this may damage sealing surfaces.
Clean sealing area of cylinder head and camshaft carrier, ensuring all traces of rubber ar

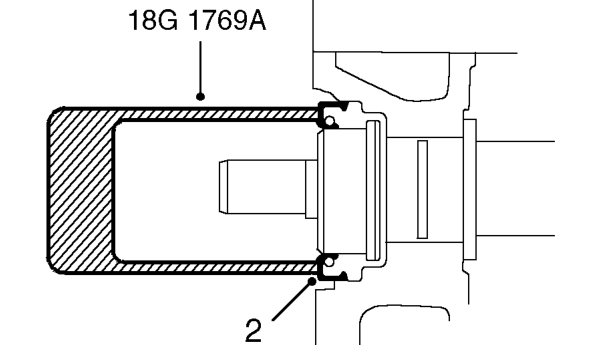

  1. Using tool 18G 1769A fit new camshaft oil seal.

NOTE: This oil seal is coloured RED.

CAUTION: Oil seal must be fitted dry. Do not use tool 18G 1769.

  1. Fit distributor cap. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  2. Fit air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Connect battery earth lead.

CRANKSHAFT FRONT PULLEY

Service repair no - 12.21.01

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  2. Remove starter motor. See ELECTRICAL, Repairs.
Crankshaft front pulley – Remove starter motor. See ELECTRICAL, Repairs.

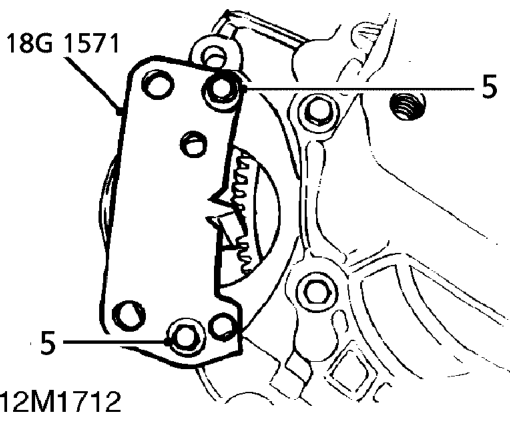

  1. Fit flywheel locking tool 18G 1571 to flywheel housing and secure with 2 bolts.
