Engine steady bar

41. Fit resonator to air intake pipe.
42. Fit bolts securing resonator to battery tray and tighten to 10 Nm.
43. Fit engine management relay module. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
44. Fit ECM. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
45. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
46. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
47. Remove stand(s) and lower vehicle.
48. Refill gearbox with oil. See MANUAL GEARBOX - ’R65’, Adjustments.
49. Refill cooling system. See COOLING SYSTEM - ’K’ SERIES, Adjustments.
50. If required: Refill engine with oil. See MAINTENANCE.
51. Adjust throttle cable. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.

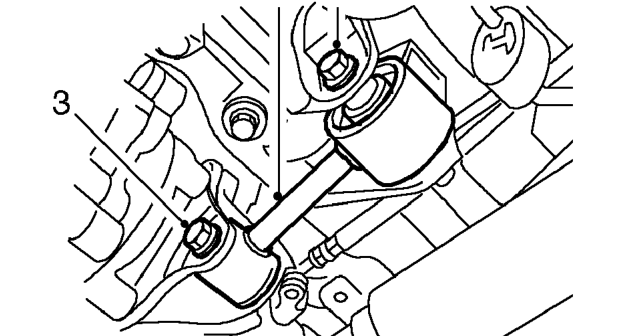

ENGINE STEADY BAR

Service repair no - 12.45.08

Remove

1. Raise front of vehicle.

WARNING: Support on safety stands.

2. Remove through bolt securing engine steady bar to subframe.
3. Remove through bolt securing engine steady bar to bracket on gearbox.
4. Remove engine steady bar.

Refit

1. Position engine steady bar to subframe and fit through bolt.
2. Fit and tighten through bolt securing steady bar to bracket on gearbox to 45 Nm.
3. Tighten through bolt securing steady bar to subframe, to 80 Nm.
4. Remove stand(s) and lower vehicle.
