SUNROOF MOTOR

Service repair no - 76.84.07

Remove

  1. Remove headlining. See this section.

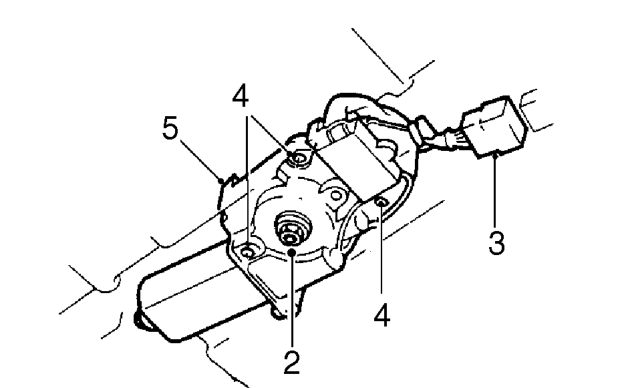

Sunroof motor – Remove headlining. See this section.
  1. Ensure sunroof is in fully closed position: Use emergency key or flat bladed screwdriver and turn transmission gear to obtain correct position.
  2. Disconnect multiplug from motor and release holder from sunroof bracket.
  3. Remove 3 Torx screws securing motor to sunroof.
  4. Remove motor.

Refit

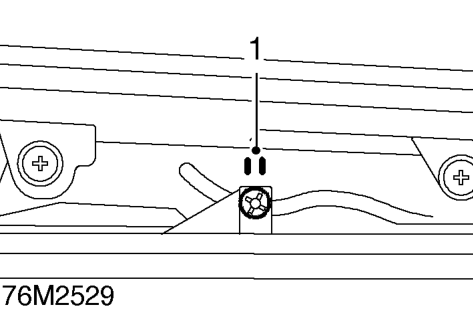

Sunroof motor – Remove motor.
  1. Check that cable culisse are aligned correctly.

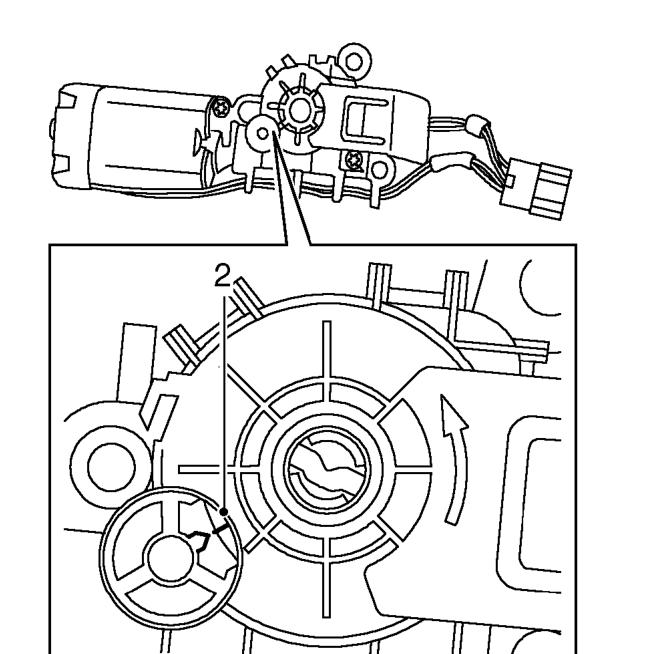

Sunroof motor – Check that cable culisse are aligned correctly.
  1. Check that motor idle cam is in fully closed position, slot in idle cam aigned with transmission gear: Adjust position of idle cam by turning transmission gear using emergency key or flat bladed screwdriver.
  2. Position sunroof motor to bracket and carefully engage drive cables.
  3. Fit and tighten Torx screws.
  4. Connect and secure multiplug to motor.
  5. Check operation of sunroof.
  6. Fit headlining. See this section.
