Clutch components - ’k’ series

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Description and operation › Clutch components - ’k’ series

ClutchClutch components - ’k’ series

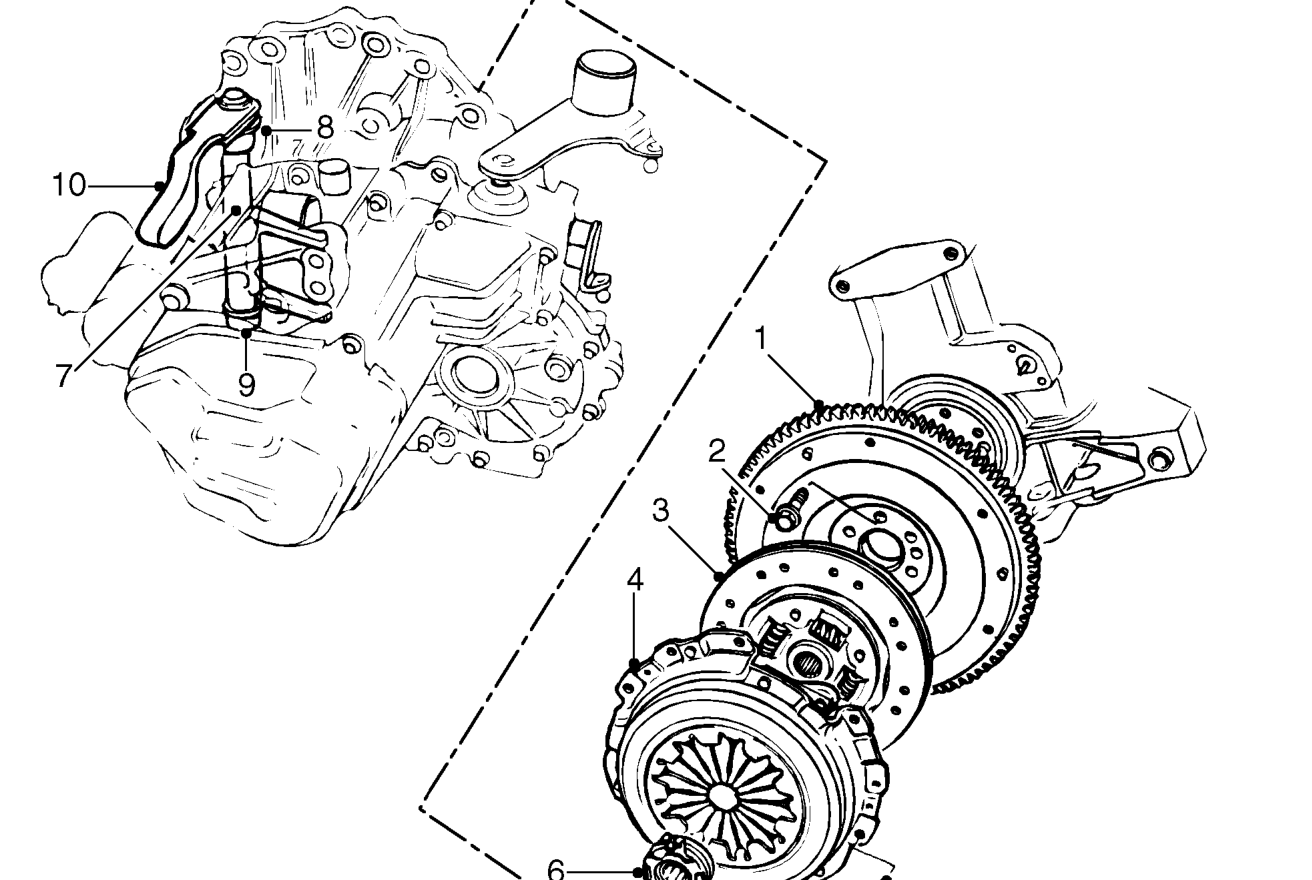

CLUTCH COMPONENTS - ’K’ SERIES

Used with ’R65’ gearbox

1. Flywheel
2. Flywheel bolts
3. Clutch drive plate
4. Clutch pressure plate
5. Clutch pressure plate Torx bolts
6. Release bearing
7. Release fork and shaft
8. Release fork upper bush
9. Release fork lower bush
10. Release lever

17 Transmission
