Clutch components - ’l’ and ’t’ series

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Description and operation › Clutch components - ’l’ and ’t’ series

ClutchClutch components - ’l’ and ’t’ series

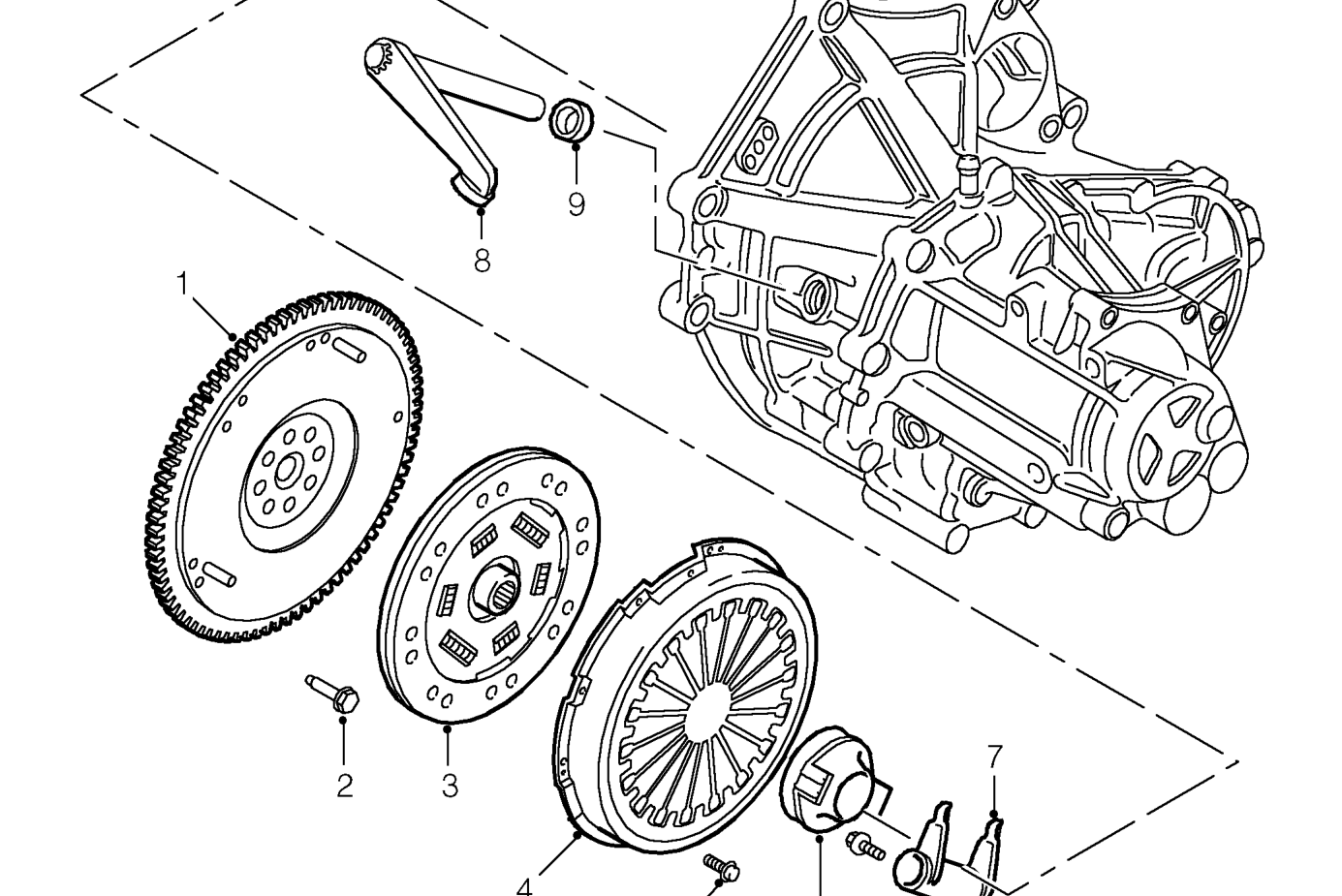

CLUTCH COMPONENTS - ’L’ AND ’T’ SERIES

Used with ’PG1’ gearbox

1. Flywheel
2. Flywheel bolts
3. Clutch drive plate
4. Clutch pressure plate
5. Clutch pressure plate bolts
6. Release bearing
7. Release fork
8. Release lever
9. Release shaft, oil seal

17 Transmission
