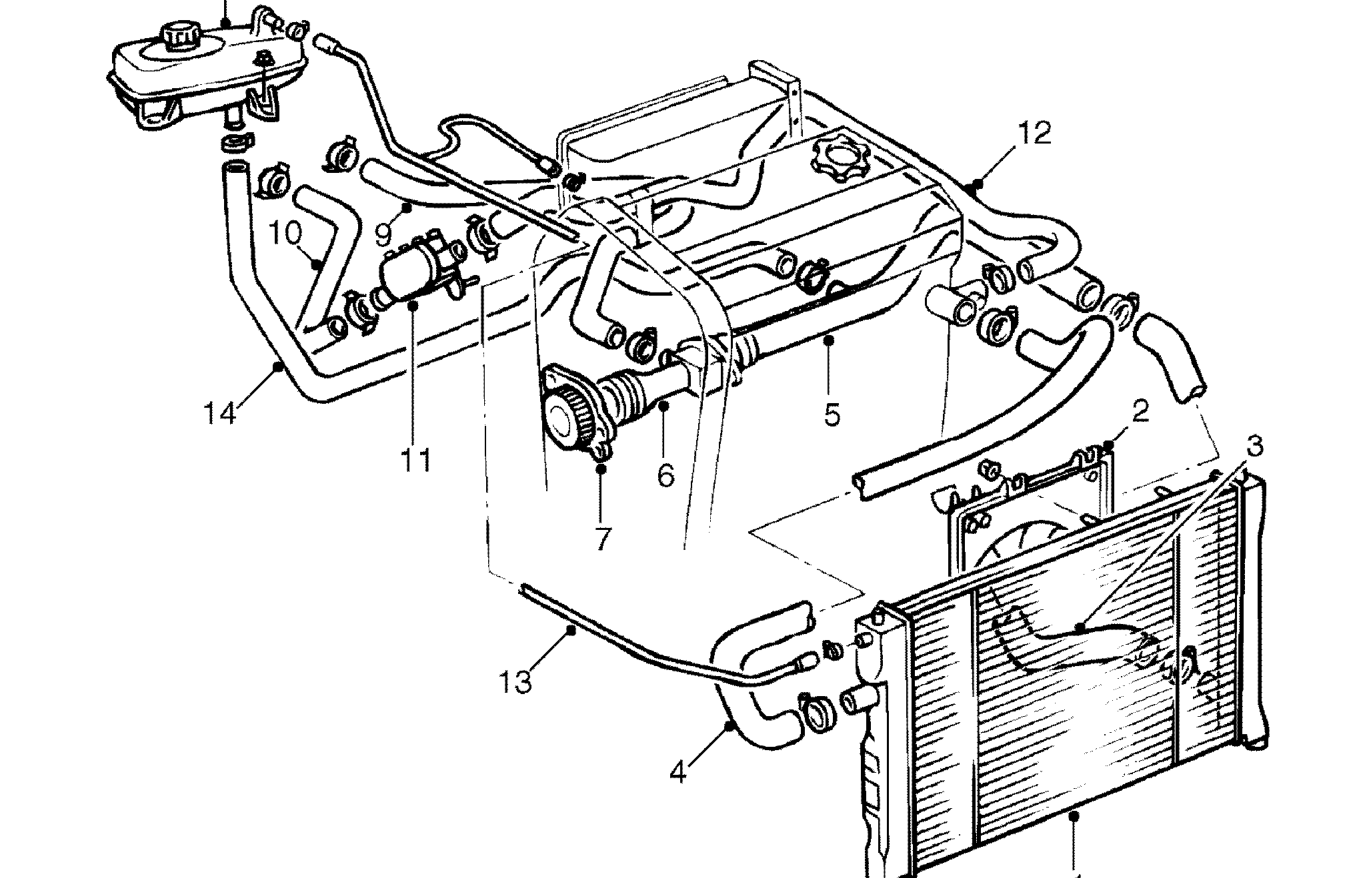

COOLING SYSTEM COMPONENTS - ’K’ SERIES

1. Radiator
2. Cooling fan and cowl
3. Bottom hose
4. Top hose
5. Pipe - bottom hose to thermostat
6. Thermostat housing
7. Coolant pump
8. Expansion tank
9. Hose - heater matrix return
10. Hose - heater matrix feed
11. Heater temperature control valve
12. Bleed screw
13. Pipe - expansion tank to radiator
14. Hose - expansion tank return
