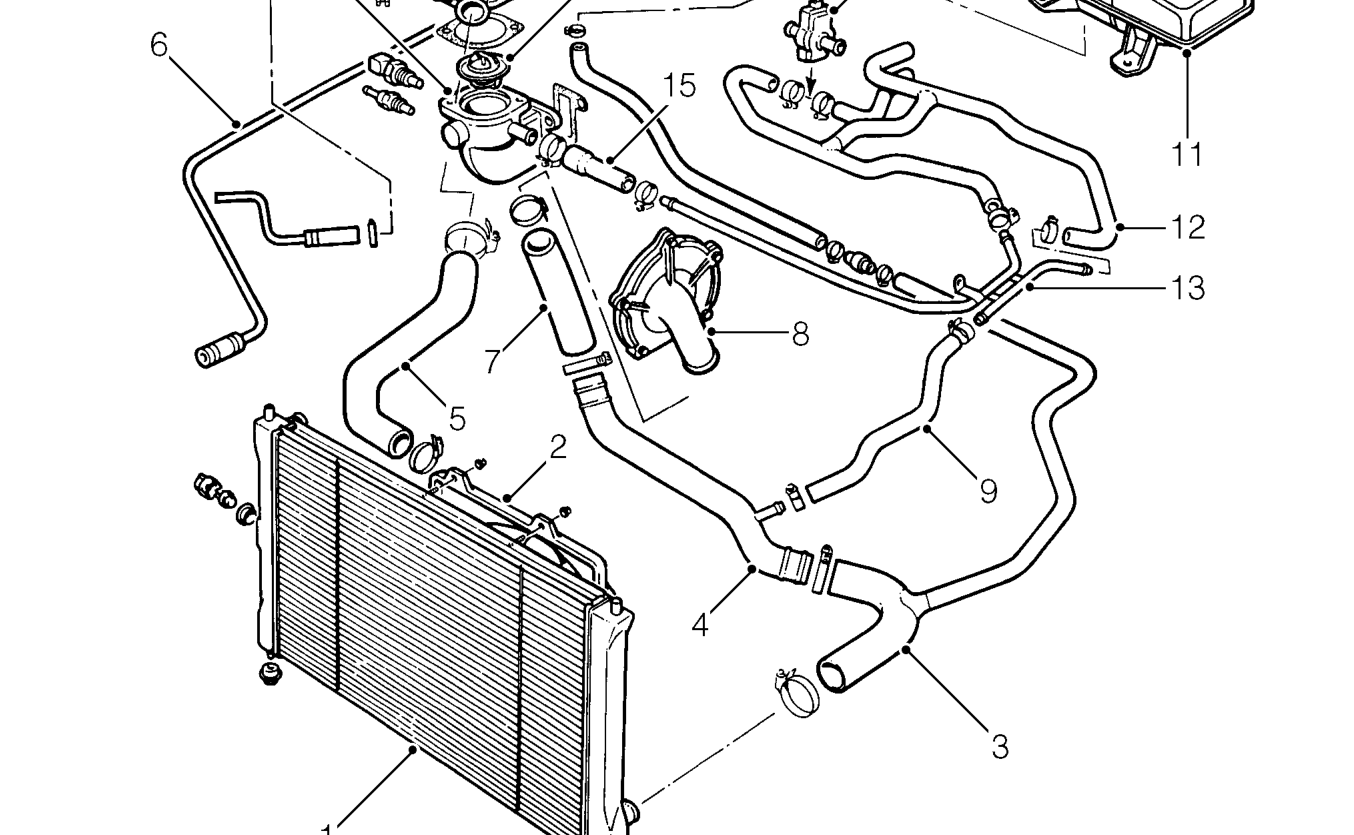

COOLING SYSTEM COMPONENTS - ’T’ SERIES

1. Radiator
2. Cooling fan and cowl
3. Bottom hose
4. Coolant rail
5. Top hose
6. Hose - expansion tank return
7. Hose - coolant pump to coolant rail
8. Coolant pump
9. Hose - coolant rail to engine coolant rail
10. Thermostat
11. Expansion tank
12. Heater hose
13. Engine coolant rail
14. Heater temperature control valve
15. Hose - thermostat housing to engine coolant rail
16. Thermostat housing
