Cooling system (’D’ Series): Description and operation

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Description and operation › ’D’ Series
Cooling system’D’ Series

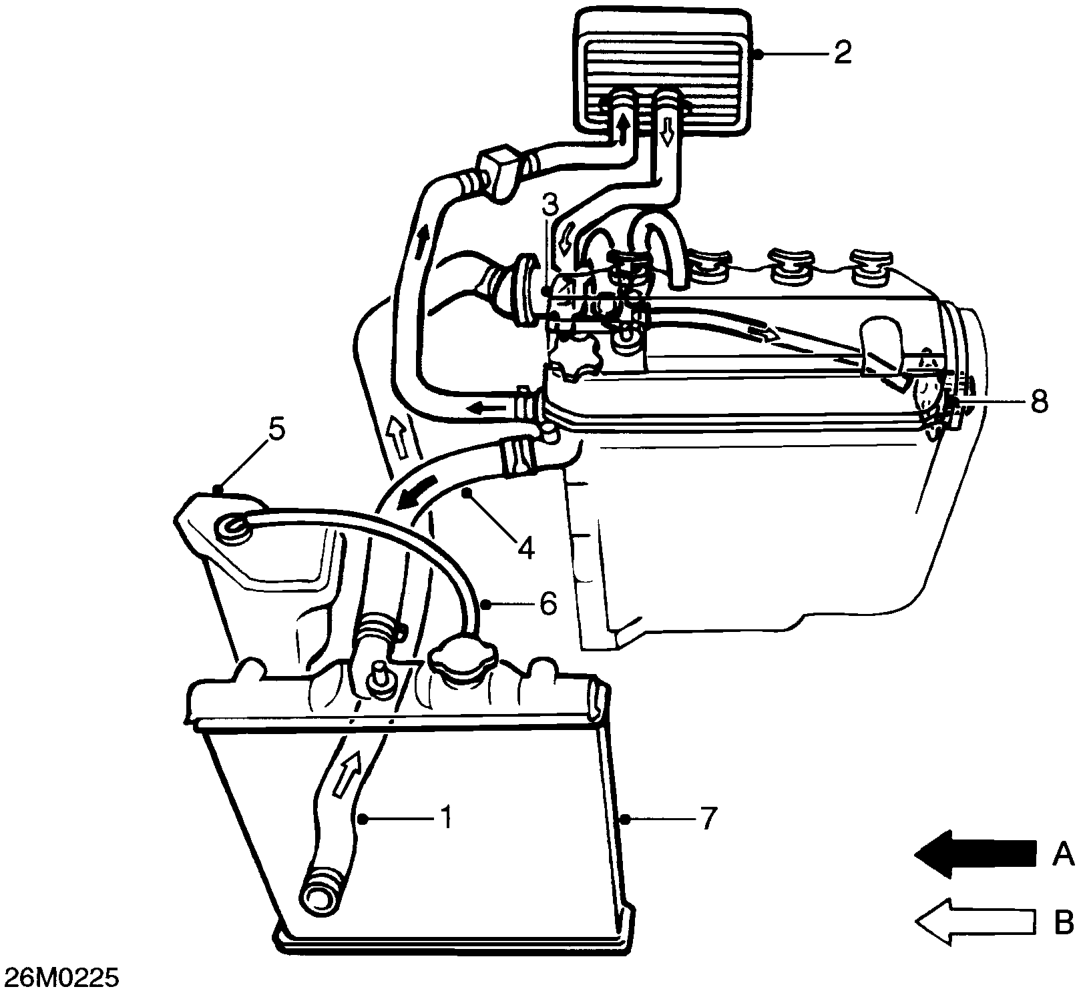

Diagram

’D’ Series

A = B = COLD

HOT

Any excess coolant created by heat expansion is returned to the expansion tank (5) via hose (6).

The radiator (7) is a copper/brass cross-flow type with moulded plastic end tanks which incorporate sensor mountings and is mounted on rubber bushes directly into the front body member. The top of the radiator is supported by means of mounting brackets bolted to the radiator and bonnet locking platform.

For additional air flow, at times when the vehicle is stationary, an electric cooling fan is fitted. This is triggered by the Engine control Module (ECM) on ’K’ Series models or by a coolant temperature sensor at the rear of the cylinder block on ’D’ Series models.

The coolant pump (8) is a rotor type pump which draws coolant directly from the thermostat housing and into the cylinder bock. The pump is driven by a geared pulley from the camshaft timing belt.
