ALTERNATOR DRIVE BELT - ’K’ SERIES WITH AIR CONDITIONING

Service repair no - 86.10.05.20

Check

  1. Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.

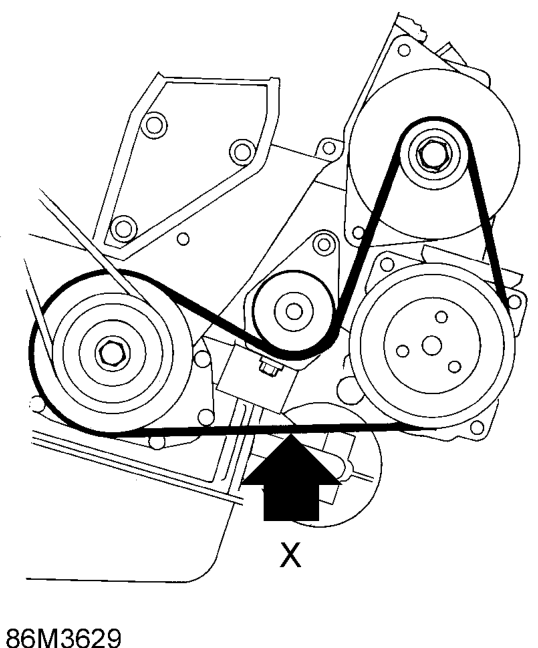

Alternator drive belt - ’k’ series with air conditioning – Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.
  1. Apply a force of 10 kg to the drive belt at position ’X’ and measure the deflection between the crankshaft pulley and air conditioning compressor pulley. Deflection must be 9 - 10 mm.

Adjust

  1. Raise front of vehicle.

WARNING: Support on safety stands.

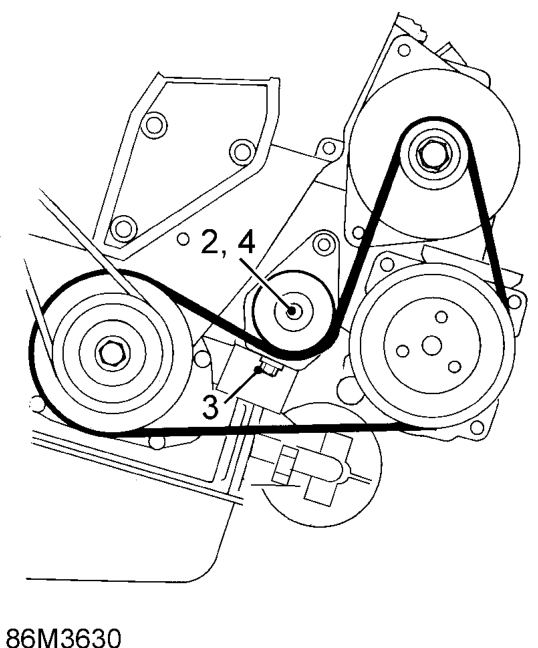

Alternator drive belt - ’k’ series with air conditioning – Raise front of vehicle.
  1. Loosen drive belt tensioner pulley securing bolt.
  2. Increase drive belt tension by turning the tension adjusting bolt clockwise.
  3. Tighten drive belt tensioner pulley securing bolt to 25 Nm.
  4. Recheck drive belt tension.
  5. Remove stand(s) and lower vehicle.
