DRIVE BELT - ’T’ SERIES WITH AIR CONDITIONING

Service repair no - 86.10.03/20

Remove

  1. Disconnect battery earth lead.
  2. Remove underbelly panel. See BODY, Exterior fittings.

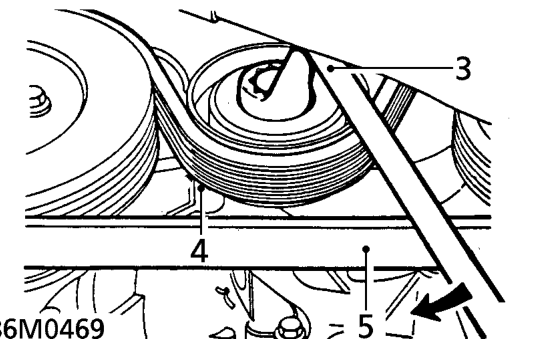

Drive belt - ’t’ series with air conditioning – Remove underbelly panel. See BODY, Exterior fittings.
  1. Using a 15 mm ring spanner on tensioner pulley bolt hold tensioner pulley fully clockwise.
  2. Release drive belt from tensioner pulley, release tensioner pulley tension and remove spanner.
  3. Remove drive belt from remaining pulleys.

Refit

  1. Clean drive belt pulley grooves, ensuring pulley grooves are not damaged.
  2. Fit NEW drive belt around pulleys, except tensioner pulley, ensuring all grooves are correctly engaged.
  3. Hold tensioner pulley fully clockwise, fit drive belt centrally around tensioner pulley; release tensioner pulley tension and remove spanner.
  4. Fit underbelly panel. See BODY, Exterior fittings.
  5. Connect battery earth lead.
